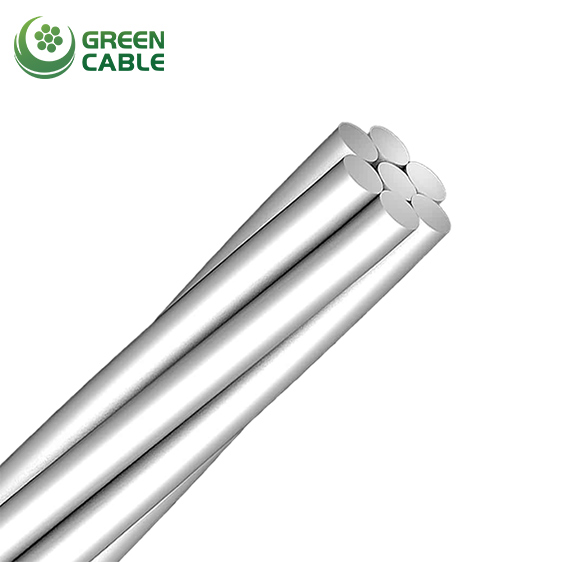

AA8176 Series Aluminum Alloy Conductor

8000 series aluminum alloys have creep rates very similar to copper building wire, resulting in similar performance. 8000 has a higher strength-to-weight ratio than an equal ampacity copper wire. Since it is lighter, the pulling tension is lower. Lower pulling tension may decrease the chances of damaging the insulated wire in doing so. There is a wide range of strengths available from dead soft to mild steel,permitting a wide range of processing from wire drawing by rolling process to provide excellent ductility.

Send Massage Get Price

Construction

8000 Series Aluminum Alloy conductors use specific alloying elements (iron, silicon, copper, rare earths) for improved strength, reduced creep (deformation) compared to older aluminum, mimicking copper's performance for reliable terminations in cables like SER (Service Entrance, Round) or MC (Metal Clad), featuring compact stranding, XLPE insulation, and often a concentric neutral, designed for safer power delivery in various residential/commercial uses.

Standards

ASTM B-800, ASTM B-801

Chemical Composition

Aluminum Alloy Designation

Ti+Va

Other Each

Other Total

8030

0.10

0.30–0.80

0.15–0.30

–

0.05

–

0.001-0.04

0.03

–

0.03

0.10

REM

8176

0.03–0.15

0.40–1.00

–

0.03

–

0.05

0.15

REM

ASTM B-801

Cmil	AWG	mm²	Class	Number of Wires	Overall Diameter (mm)	Tightening diameter (mm)	Weight (kg/km)	Max D.C.Resistance at 20℃ (Ω/km)
1000000		507	D	127	29.3	26.9	1400	0.0568
1000000		507	C	91	29.3	26.9	1400	0.0568
1000000		507	B, A	61	29.3	26.9	1400	0.0568
900000		456	D	127	27.8	25.4	1260	0.0633
900000		456	C	91	27.8	25.4	1260	0.0633
900000		456	B, A	61	27.8	25.4	1260	0.0633
800000		405	D	127	26.2	23.8	1120	0.0712
800000		405	C	91	26.2	23.8	1120	0.0712
800000		405	B, A	61	26.2	23.8	1120	0.0712
750000		380	D	127	25.3	23.1	1050	0.0758
750000		380	C	91	25.4	23.1	1050	0.0758
750000		380	B, A	61	25.3	23.1	1050	0.0758
700000		355	D	127	24.5	22.3	981	0.0814
700000		355	C	91	24.5	22.3	981	0.0814
700000		355	B, A	61	24.5	22.3	981	0.0814
650000		329	D	127	23.6	21.5	911	0.0876
650000		329	C	91	23.6	21.5	911	0.0876
650000		329	B	61	23.6	21.5	911	0.0876
650000		329	A	37	23.6	21.5	911	0.0876
600000		304	D	127	22.7	20.7	841	0.0948
600000		304	C	91	22.7	20.7	841	0.0948
600000		304	B	61	22.7	20.7	841	0.0948
600000		304	A	37	22.6	20.7	841	0.0948
556500		282	D	127	21.9	19.8	780	0.1024
556500		282	C	91	21.8	19.8	780	0.1024
556500		282	B	61	21.8	19.8	780	0.1024
556500		282	A	37	21.8	19.8	780	0.1024
550000		279	D	127	21.7	19.7	771	0.1034
550000		279	C	91	21.7	19.7	771	0.1034
550000		279	B	61	21.7	19.7	771	0.1034
550000		279	A	37	21.7	19.7	771	0.1034
500000		253	D	91	20.7	18.7	701	0.1139
500000		253	C	61	20.7	18.7	701	0.1139
500000		253	B, A	37	20.7	18.7	701	0.1139
477000		242	D	91	20.2	18.3	668	0.1194
477000		242	C	61	20.2	18.3	668	0.1194
477000		242	B, A	37	20.2	18.3	668	0.1194
450000		228	D	91	19.6	17.8	631	0.1263
450000		228	C	61	19.6	17.8	631	0.1263
450000		228	B, A	37	19.6	17.8	631	0.1263
400000		203	D	91	18.5	16.7	559	0.1424
400000		203	C	61	18.5	16.7	559	0.1424
400000		203	B, A	37	18.5	16.7	559	0.1424
397500		201	D	91	18.5	16.7	557	0.1431
397500		201	C	61	18.4	16.7	557	0.1431
397500		201	B	37	18.4	16.7	557	0.1431
397500		201	A	19	18.4	16.7	557	0.1431
350000		177	D	91	17.3	15.6	490	0.1624
350000		177	C	61	17.3	15.6	490	0.1624
350000		177	B	37	17.3	15.6	490	0.1624
350000		177	A	19	17.2	15.6	490	0.1624
336400		170	C	61	17.0	15.3	472	0.1693
336400		170	B	37	17.0	15.3	472	0.1693
336400		170	A	19	16.9	15.3	472	0.1693
300000		152	C	61	16.0	14.5	420	0.1896
300000		152	B	37	16.0	15.1	420	0.1896
300000		152	A	19	16.0	14.5	420	0.1896
266800		135	C	61	15.1	13.6	373	0.2133
266800		135	B	37	15.1	13.6	373	0.2133
266800		135	A	19	15.0	13.6	373	0.2133
250000		127	C	61	14.6	13.2	350	0.2277
250000		127	B	37	14.6	13.8	350	0.2277
250000		127	A	19	14.6	13.2	350	0.2277
211600	0000	107	C	37	13.4	12.1	296	0.2690
211600	0000	107	B	19	13.4	12.6	296	0.2690
211600	0000	107	A	7	13.3	12.1	296	0.2690
167800	000	85.0	C	37	12.0	10.7	235	0.3389
167800	000	85.0	B	19	11.9	11.3	235	0.3389
167800	000	85.0	A	7	11.8	10.7	235	0.3389
133100	00	67.4	B	19	10.6	10.0	186	0.4275
133100	00	67.4	A	7	10.5	9.55	186	0.4275
105600	0	53.5	B	19	9.46	8.53	148	0.5387
105600	0	53.5	A	7	9.36	8.94	148	0.5387
83690	1	42.4	B	19	8.43	7.95	117	0.6798
66360	2	33.6	B, A	7	7.42	6.81	93.0	0.8573
52620	3	26.7	B, A	7	6.61	6.05	73.7	1.0814
41740	4	21.2	B, A	7	5.88	5.41	58.5	1.3633
26240	6	13.3	B, A	7	4.66	4.29	36.8	2.1684
16510	8	8.37	B, A	7	3.70	3.40	23.1	3.4464
