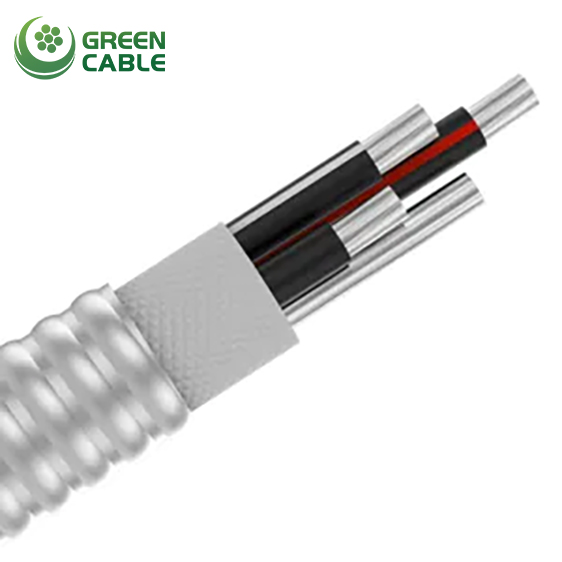

AC90 Cable is suitable for use as follows: branch, feeder and service power distribution in commercial, industrial, multi-residential buildings, theaters and places of assembly. It is installed in cable tray and approved raceways.It is suitable for use in wet or dry locations. Its Maximum voltage rating for all applications is 600 V.
Conductor：8 AWG. to 750 kcmil compact class “B” stranded aluminum (8000 series aluminum).
Insulation：XLPE (Cross-linked Polyethylene) Type RW90
Core color：Three Cores- Black, White, Red for sizes #8 To #2 Black with color code for size #1 to 750MCM
Bonding Conductor (Ground): One bare stranded class “B” aluminum conductor
Armour：Aluminum Interlocked Armour (AIA).
Industry compliances: CSA Standard C22.2 No. 51, No.38 and No.2256, RoHS
Flame test compliances: CSA ST1 and FT4
|
No.of Core |
Conductor Size |
Ground Wire Size |
Norminal thickness of insulation |
Norminal Diameter After Cabling |
Norminal Diameter After Armour |
Net Weight |
Current Rating |
||||
|
AWG or Kcmil |
AWG |
Inches |
mm |
Inches |
mm |
Inches |
mm |
KG/KM |
LBS/1KFT |
AMP |
|
|
3 |
8 |
8 |
0.045 |
1.14 |
0.486 |
12.3 |
0.730 |
18.5 |
319 |
215 |
45 |
|
6 |
8 |
0.045 |
1.14 |
0.570 |
14.5 |
0.820 |
20.8 |
390 |
262 |
55 |
|
|
4 |
6 |
0.045 |
1.14 |
0.664 |
16.9 |
0.915 |
23.2 |
502 |
338 |
75 |
|
|
3 |
6 |
0.045 |
1.14 |
0.712 |
18.1 |
0.978 |
24.8 |
571 |
384 |
85 |
|
|
2 |
6 |
0.045 |
1.14 |
0.785 |
19.9 |
1.035 |
26.3 |
653 |
439 |
100 |
|
|
1 |
4 |
0.055 |
1.40 |
0.902 |
22.9 |
1.152 |
29.3 |
811 |
546 |
115 |
|
|
1/0 |
4 |
0.055 |
1.40 |
0.978 |
24.8 |
1.281 |
32.5 |
949 |
638 |
135 |
|
|
2/0 |
4 |
0.055 |
1.40 |
1.066 |
27.1 |
1.316 |
33.4 |
1089 |
733 |
150 |
|
|
3/0 |
4 |
0.055 |
1.40 |
1.170 |
29.7 |
1.420 |
36.1 |
1275 |
858 |
175 |
|
|
4/0 |
2 |
0.055 |
1.40 |
1.281 |
32.5 |
1.531 |
38.9 |
1518 |
1021 |
205 |
|
|
250 |
2 |
0.065 |
1.65 |
1.391 |
35.3 |
1.641 |
41.7 |
1791 |
1205 |
230 |
|
|
300 |
2 |
0.065 |
1.65 |
1.518 |
38.6 |
1.828 |
46.4 |
2017 |
1357 |
260 |
|
|
350 |
2 |
0.065 |
1.65 |
1.593 |
40.5 |
1.843 |
46.8 |
2301 |
1548 |
280 |
|
|
400 |
1 |
0.065 |
1.65 |
1.681 |
42.7 |
1.991 |
50.6 |
2549 |
1715 |
305 |
|
|
500 |
1 |
0.065 |
1.65 |
1.845 |
46.9 |
2.155 |
54.7 |
3143 |
2114 |
350 |
|
|
600 |
1 |
0.08 |
2.03 |
2.073 |
52.7 |
2.323 |
59.0 |
3542 |
2383 |
385 |
|
|
750 |
1/0 |
0.08 |
2.03 |
2.273 |
57.7 |
2.523 |
64.1 |
4367 |
2938 |
435 |
|
