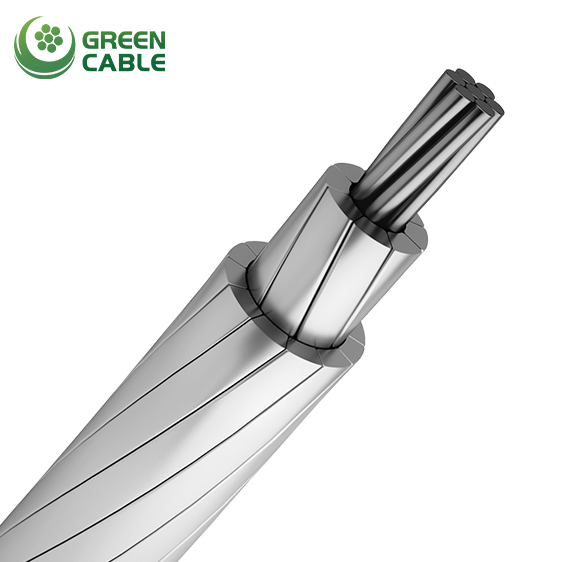

Shaped Wire Compact Concentric-Lay-Stranded Aluminum Conductor, Steel-Reinforced(ACSR/TW) is designed for use as a bare overhead conductor. There are two designs of ACSR/TW. One design gives an equal area of aluminum when compared to the standard ACSR conductor sizes. The other design gives an overall outside diameter equal to standard ACSR conductor sizes. Use of this conductor in the equal area design allows equal Ampacity in a smaller diameter conductor when compared with standard ACSR conductor. Use of this conductor in the equal diameter design allows more ampacity in an equal diameter conductor when compared with standard ACSR conductor.
Aluminum alloy 1350-H19 trapezoidal shaped wires, concentrically stranded about a steel core. Additional corrosion protection is available through the application of grease to the core or infusion of the complete cable with grease.
ASTM B230, ASTM B498, ASTM B500, ASTM B779
|
Shaped Wire Concentric-Lay Compact Aluminum Conductors Steel Reinforced (ACSR/TW) Area Equal to Standard ACSR Sizes |
||||||||||||||||
|
Code Word |
Size (kcmil) |
Type No. |
Cross Sectional Area (in2) |
Stranding |
Diameter (in) |
Weight (lb/1000 ft) |
Rated Breaking Strength (lb) |
Resistance (Ω/mi) |
Ampacity (AMP)+ |
|||||||
|
Alum. |
Total |
No of Layers of Alum. |
No. of Alum. Wires |
No. & Diameter Individual Steel Wire |
Steel Core |
Complete Conductor |
Alum. |
Steel |
Total |
Standard Strength |
DC @ 20°C |
AC @ 75°C |
@ 75°C |
|||
|
Partridge/TW |
266.8 |
16 |
0.2094 |
0.2435 |
2 |
14 |
7 x 0.0788 |
0.2364 |
0.595 |
250 |
116 |
366 |
11200 |
0.3356 |
0.4103 |
449 |
|
Linnet/TW |
336.4 |
16 |
0.2642 |
0.3073 |
2 |
16 |
7 x 0.0885 |
0.2655 |
0.667 |
316 |
146 |
462 |
14000 |
0.2662 |
0.3255 |
519 |
|
Oriole/TW |
336.4 |
23 |
0.2642 |
0.3259 |
2 |
16 |
7 x 0.1059 |
0.3177 |
0.693 |
317 |
209 |
526 |
17100 |
0.265 |
0.3239 |
525 |
|
Merlin/TW |
336.4 |
6 |
0.2642 |
0.2788 |
2 |
14 |
1 x 0.1367 |
0.1367 |
0.630 |
315 |
50 |
365 |
8560 |
0.2693 |
0.3298 |
508 |
|
Flicker/TW |
477 |
13 |
0.3747 |
0.4233 |
2 |
18 |
7 x 0.0940 |
0.2820 |
0.776 |
448 |
165 |
613 |
17200 |
0.1884 |
0.2308 |
641 |
|
Hawk/TW |
477 |
16 |
0.3746 |
0.4356 |
2 |
18 |
7 x 0.1053 |
0.3159 |
0.789 |
449 |
206 |
655 |
19400 |
0.1877 |
0.2299 |
645 |
|
Hen/TW |
477 |
23 |
0.3745 |
0.4619 |
2 |
20 |
7 x 0.1261 |
0.3783 |
0.820 |
450 |
296 |
746 |
23600 |
0.1869 |
0.2287 |
653 |
|
Parakeet/TW |
556.5 |
13 |
0.4371 |
0.4937 |
2 |
18 |
7 x 0.1015 |
0.3045 |
0.835 |
523 |
192 |
715 |
20000 |
0.1615 |
0.1980 |
707 |
|
Dove/TW |
556.5 |
16 |
0.4371 |
0.5083 |
2 |
20 |
7 x 0.1138 |
0.3414 |
0.852 |
524 |
241 |
765 |
22600 |
0.1609 |
0.1973 |
711 |
|
Swift/TW |
636 |
3 |
0.4995 |
0.5133 |
3 |
27 |
1 x 0.1329 |
0.1329 |
0.850 |
599 |
47 |
646 |
13500 |
0.1435 |
0.1821 |
740 |
|
Rook/TW |
636 |
13 |
0.4995 |
0.5643 |
2 |
20 |
7 x 0.1085 |
0.3255 |
0.890 |
597 |
219 |
816 |
22900 |
0.1413 |
0.1735 |
767 |
|
Scoter/TW |
636 |
23 |
0.4994 |
0.6159 |
2 |
22 |
7 x 0.1456 |
0.4368 |
0.942 |
600 |
395 |
995 |
30400 |
0.1398 |
0.1714 |
783 |
|
Grosbeak/TW |
636 |
16 |
0.4995 |
0.5808 |
2 |
20 |
7 x 0.1216 |
0.3648 |
0.908 |
599 |
275 |
873 |
25400 |
0.1408 |
0.1728 |
772 |
|
Tern/TW |
795 |
7 |
0.6244 |
0.6675 |
2 |
17 |
7 x 0.0886 |
0.2658 |
0.960 |
746 |
146 |
892 |
21000 |
0.1138 |
0.1405 |
869 |
|
Puffin/TW |
795 |
10 |
0.6244 |
0.6919 |
2 |
18 |
7 x 0.1108 |
0.3324 |
0.980 |
747 |
228 |
975 |
25900 |
0.1133 |
0.1397 |
876 |
|
Condor/TW |
795 |
13 |
0.6244 |
0.7053 |
2 |
20 |
7 x 0.1213 |
0.3639 |
0.993 |
747 |
274 |
1021 |
28200 |
0.1130 |
0.1392 |
880 |
|
Drake/TW |
795 |
16 |
0.6244 |
0.7261 |
2 |
20 |
7 x 0.1360 |
0.4080 |
1.010 |
748 |
344 |
1092 |
31800 |
0.1126 |
0.1386 |
886 |
|
Phoenix/TW |
954 |
5 |
0.7493 |
0.7876 |
3 |
30 |
7 x 0.0837 |
0.2511 |
1.044 |
898 |
131 |
1029 |
23700 |
0.0954 |
0.1217 |
956 |
|
Rail/TW |
954 |
7 |
0.7493 |
0.8011 |
3 |
32 |
7 x 0.0971 |
0.2913 |
1.061 |
900 |
175 |
1075 |
25900 |
0.0953 |
0.1214 |
960 |
|
Cardinal/TW |
954 |
13 |
0.7493 |
0.8464 |
2 |
20 |
7 x 0.1329 |
0.3987 |
1.084 |
897 |
329 |
1226 |
33500 |
0.0942 |
0.1164 |
985 |
|
Shaped Wire Concentric-Lay Compact Aluminum Conductors Steel Reinforced (ACSR/TW) Area Equal to Standard ACSR Sizes |
||||||||||||||||
|
Code Word |
Size (kcmil) |
Type No. |
Cross Sectional Area (in2) |
Stranding |
Diameter (in) |
Weight (lb/1000 ft) |
Rated Breaking Strength (lb) |
Resistance (Ω/mi) |
Ampacity (AMP)+ |
|||||||
|
Alum. |
Total |
No of Layers of Alum. |
No. of Alum. Wires |
No. & Diameter Individual Steel Wire |
Steel Core |
Complete Conductor |
Alum. |
Steel |
Total |
Standard Strength |
DC @ 20°C |
AC @ 75°C |
@ 75°C |
|||
|
Snowbird/TW |
1033.5 |
5 |
0.8117 |
0.8534 |
3 |
30 |
7 x 0.0871 |
0.2613 |
1.089 |
974 |
141 |
1115 |
25700 |
0.0880 |
0.1126 |
1004 |
|
Ortolan/TW |
1033.5 |
7 |
0.8117 |
0.8678 |
3 |
32 |
7 x 0.1010 |
0.3030 |
1.102 |
975 |
190 |
1165 |
28100 |
0.0879 |
0.1123 |
1008 |
|
Curlew/TW |
1033.5 |
13 |
0.8117 |
0.9169 |
2 |
22 |
7 x 0.1383 |
0.4149 |
1.129 |
971 |
356 |
1327 |
36300 |
0.0869 |
0.1077 |
1035 |
|
Avocet/TW |
1113 |
5 |
0.8742 |
0.9191 |
3 |
30 |
7 x 0.0904 |
0.2712 |
1.129 |
1049 |
152 |
1201 |
27500 |
0.0818 |
0.1048 |
1050 |
|
Bluejay/TW |
1113 |
7 |
0.8742 |
0.9347 |
3 |
33 |
7 x 0.1049 |
0.3147 |
1.143 |
1049 |
205 |
1254 |
30300 |
0.0816 |
0.1045 |
1055 |
|
Finch/TW |
1113 |
13 |
0.8742 |
0.9851 |
3 |
38 |
19 x 0.0862 |
0.4310 |
1.185 |
1053 |
376 |
1429 |
39100 |
0.0812 |
0.1035 |
1071 |
|
Oxbird/TW |
1192.5 |
5 |
0.9366 |
0.9848 |
3 |
30 |
7 x 0.0936 |
0.2808 |
1.167 |
1123 |
163 |
1286 |
29500 |
0.0763 |
0.0981 |
1095 |
|
Bunting/TW |
1192.5 |
7 |
0.9366 |
1.0013 |
3 |
34 |
7 x 0.1085 |
0.3255 |
1.181 |
1124 |
219 |
1343 |
32400 |
0.0762 |
0.0978 |
1100 |
|
Grackel/TW |
1192.5 |
13 |
0.9366 |
1.0554 |
3 |
38 |
19 x 0.0892 |
0.4460 |
1.225 |
1127 |
403 |
1530 |
41900 |
0.0758 |
0.0968 |
1117 |
|
Scissortail/TW |
1272 |
5 |
0.9991 |
1.0505 |
3 |
30 |
7 x 0.0967 |
0.2901 |
1.203 |
1198 |
174 |
1372 |
31400 |
0.0715 |
0.0922 |
1139 |
|
Bittern/TW |
1272 |
7 |
0.9990 |
1.0681 |
3 |
38 |
7 x 0.1121 |
0.3363 |
1.220 |
1198 |
235 |
1433 |
34600 |
0.0714 |
0.0919 |
1145 |
|
Pheasant/TW |
1272 |
13 |
0.9990 |
1.1256 |
3 |
39 |
19 x 0.0921 |
0.4605 |
1.264 |
1202 |
430 |
1632 |
44100 |
0.0711 |
0.0909 |
1162 |
|
Dipper/TW |
1351.5 |
7 |
1.0615 |
1.1348 |
3 |
35 |
7 x 0.1155 |
0.3465 |
1.256 |
1274 |
248 |
1522 |
36700 |
0.0672 |
0.0868 |
1187 |
|
Martin/TW |
1351.5 |
13 |
1.0615 |
1.1959 |
3 |
42 |
19 x 0.0949 |
0.4745 |
1.300 |
1278 |
456 |
1734 |
46800 |
0.0669 |
0.0858 |
1205 |
|
Bobolink/TW |
1431 |
7 |
1.1236 |
1.2017 |
3 |
36 |
7 x 0.1189 |
0.3567 |
1.291 |
1350 |
263 |
1613 |
38900 |
0.0635 |
0.0822 |
1229 |
|
Plover/TW |
1431 |
13 |
1.1239 |
1.2664 |
3 |
39 |
19 x 0.0977 |
0.4885 |
1.337 |
1353 |
483 |
1836 |
49600 |
0.0632 |
0.0812 |
1248 |
|
Lapwing/TW |
1590 |
7 |
1.2488 |
1.3351 |
3 |
36 |
7 x 0.1253 |
0.3759 |
1.358 |
1500 |
292 |
1792 |
42200 |
0.0572 |
0.0745 |
1308 |
|
Falcon/TW |
1590 |
13 |
1.2488 |
1.4071 |
3 |
42 |
19 x 0.1030 |
0.5150 |
1.408 |
1503 |
537 |
2040 |
55100 |
0.0569 |
0.0735 |
1330 |
|
Chukar/TW |
1780 |
8 |
1.3986 |
1.5120 |
3 |
38 |
19 x 0.0874 |
0.4370 |
1.445 |
1676 |
387 |
2063 |
50700 |
0.0509 |
0.0667 |
1405 |
|
Bluebird/TW |
2156 |
8 |
1.0934 |
1.8312 |
4 |
64 |
19 x 0.0961 |
0.4805 |
1.608 |
2047 |
468 |
2515 |
61100 |
0.0424 |
0.0554 |
1585 |
|
Shaped Wire Concentric-Lay Compact Aluminum Conductors Steel Reinforced (ACSR/TW) |
||||||||||||||||
|
Diameters Equal to Standard ACSR Sizes |
||||||||||||||||
|
Code Word |
Size (kcmil) |
Type No. |
Cross Sectional Area (in2) |
Stranding |
Diameter (in) |
Weight (lb/1000 ft) |
Rated Breaking Strength (lb) |
Resistance (Ω/mi) |
Ampacity (AMP)+ |
|||||||
|
Alum. |
Total |
No of Layers of Alum. |
No. of Alum. Wires |
No. & Diameter Individual Steel Wire |
Steel Core |
Complete Conductor |
Alum. |
Steel |
Total |
Standard Strength |
DC @ 20°C |
AC @ 75°C |
@ 75°C |
|||
|
Monongahela/TW |
405.1 |
6 |
0.3181 |
0.3362 |
2 |
14 |
1 x 0.1520 |
0.1520 |
0.680 |
380 |
61 |
441 |
10200 |
0.2236 |
0.2741 |
568 |
|
Mohawk/TW |
571.7 |
13 |
0.4490 |
0.5074 |
2 |
18 |
7 x 0.1030 |
0.3090 |
0.846 |
537 |
198 |
735 |
20600 |
0.1572 |
0.1928 |
717 |
|
Calumet/TW |
565.3 |
16 |
0.4439 |
0.5165 |
2 |
20 |
7 x 0.1147 |
0.3441 |
0.858 |
531 |
245 |
776 |
22900 |
0.1584 |
0.1942 |
717 |
|
Mystic/TW |
666.6 |
13 |
0.5236 |
0.5914 |
2 |
20 |
7 x 0.1111 |
0.3333 |
0.913 |
626 |
230 |
856 |
24000 |
0.1348 |
0.1656 |
790 |
|
Oswego/TW |
664.8 |
16 |
0.5221 |
0.6072 |
2 |
20 |
7 x 0.1244 |
0.3732 |
0.927 |
625 |
288 |
913 |
26600 |
0.1347 |
0.1654 |
793 |
|
Nechako/TW |
768.9 |
3 |
0.6039 |
0.6220 |
3 |
27 |
1 x 0.1520 |
0.1520 |
0.930 |
724 |
61 |
785 |
16400 |
0.1187 |
0.1510 |
832 |
|
Maumee/TW |
768.2 |
13 |
0.6034 |
0.6819 |
2 |
20 |
7 x 0.1195 |
0.3585 |
0.977 |
722 |
266 |
988 |
27700 |
0.1170 |
0.1440 |
862 |
|
Wabash/TW |
762.8 |
16 |
0.5992 |
0.6966 |
2 |
20 |
7 x 0.1331 |
0.3993 |
0.990 |
717 |
330 |
1047 |
30500 |
0.1174 |
0.1446 |
863 |
|
Kettle/TW |
957.2 |
7 |
0.7518 |
0.8038 |
3 |
32 |
7 x 0.0973 |
0.2919 |
1.060 |
903 |
176 |
1079 |
26000 |
0.0949 |
0.1210 |
962 |
|
Fraser/TW |
946.7 |
10 |
0.7436 |
0.8168 |
3 |
35 |
7 x 0.1154 |
0.3462 |
1.077 |
894 |
248 |
1142 |
29600 |
0.0957 |
0.1217 |
963 |
|
Columbia/TW |
966.2 |
13 |
0.7589 |
0.8573 |
2 |
21 |
7 x 0.1338 |
0.4014 |
1.092 |
908 |
333 |
1241 |
34000 |
0.0930 |
0.1150 |
993 |
|
Suwannee/TW |
959.6 |
16 |
0.7537 |
0.8762 |
2 |
22 |
7 x 0.1493 |
0.4479 |
1.108 |
903 |
415 |
1318 |
37000 |
0.0933 |
0.1152 |
996 |
|
Cheyenne/TW |
1168.1 |
5 |
0.9175 |
0.9646 |
3 |
30 |
7 x 0.0926 |
0.2778 |
1.155 |
1100 |
160 |
1260 |
28900 |
0.0779 |
0.1001 |
1081 |
|
Genesee/TW |
1158 |
7 |
0.9095 |
0.9733 |
3 |
34 |
7 x 0.1078 |
0.3234 |
1.165 |
1092 |
216 |
1308 |
31600 |
0.0785 |
0.1005 |
1081 |
|
Hudson/TW |
1158.4 |
13 |
0.9098 |
1.0281 |
2 |
24 |
7 x 0.1467 |
0.4401 |
1.196 |
1089 |
400 |
1489 |
39600 |
0.0776 |
0.0964 |
1111 |
|
Catawba/TW |
1272 |
5 |
0.9991 |
1.0505 |
3 |
30 |
7 x 0.0967 |
0.2901 |
1.203 |
1198 |
174 |
1372 |
31400 |
0.0715 |
0.0922 |
1139 |
|
Nelson/TW |
1257.1 |
7 |
0.9874 |
1.0557 |
3 |
35 |
7 x 0.1115 |
0.3345 |
1.213 |
1186 |
231 |
1417 |
34200 |
0.0723 |
0.0930 |
1137 |
|
Yukon/TW |
1233.6 |
13 |
0.9689 |
1.0925 |
3 |
38 |
19 x 0.0910 |
0.4550 |
1.245 |
1167 |
419 |
1586 |
42900 |
0.0733 |
0.0937 |
1140 |
|
Truckee/TW |
1372.5 |
5 |
1.0780 |
1.1334 |
3 |
30 |
7 x 0.1004 |
0.3012 |
1.248 |
1293 |
188 |
1481 |
33400 |
0.0663 |
0.0858 |
1192 |
|
Shaped Wire Concentric-Lay Compact Aluminum Conductors Steel Reinforced (ACSR/TW) |
||||||||||||||||
|
Diameters Equal to Standard ACSR Sizes |
||||||||||||||||
|
Code Word |
Size (kcmil) |
Type No. |
Cross Sectional Area (in2) |
Stranding |
Diameter (in) |
Weight (lb/1000 ft) |
Rated Breaking Strength (lb) |
Resistance (Ω/mi) |
Ampacity (AMP)+ |
|||||||
|
Alum. |
Total |
No of Layers of Alum. |
No. of Alum. Wires |
No. & Diameter Individual Steel Wire |
Steel Core |
Complete Conductor |
Alum. |
Steel |
Total |
Standard Strength |
DC @ 20°C |
AC @ 75°C |
@ 75°C |
|||
|
Mackenzie/TW |
1359.7 |
7 |
1.0679 |
1.1418 |
3 |
36 |
7 x 0.1159 |
0.3477 |
1.259 |
1280 |
250 |
1530 |
36900 |
0.0668 |
0.0863 |
1192 |
|
Thames/TW |
1334.6 |
13 |
1.3480 |
1.1809 |
3 |
38 |
19 x 0.0944 |
0.4720 |
1.290 |
1262 |
451 |
1713 |
46300 |
0.0677 |
0.0868 |
1195 |
|
St. Croix/TW |
1467.8 |
5 |
1.1529 |
1.2124 |
3 |
33 |
7 x 0.1041 |
0.3123 |
1.292 |
1383 |
202 |
1585 |
35800 |
0.0620 |
0.0806 |
1241 |
|
Miramichi/TW |
1455.3 |
7 |
1.1430 |
1.2222 |
3 |
36 |
7 x 0.1200 |
0.3600 |
1.302 |
1372 |
268 |
1640 |
39200 |
0.0624 |
0.0809 |
1241 |
|
Merrimack/TW |
1433.6 |
13 |
1.1250 |
1.2677 |
3 |
39 |
19 x 0.0978 |
0.4890 |
1.340 |
1356 |
484 |
1840 |
49700 |
0.0631 |
0.0811 |
1250 |
|
Platte/TW |
1569 |
5 |
1.2323 |
1.2957 |
3 |
33 |
7 x 0.1074 |
0.3222 |
1.334 |
1478 |
215 |
1693 |
38200 |
0.0580 |
0.0758 |
1291 |
|
Potomac/TW |
1557.4 |
7 |
1.2232 |
1.3079 |
3 |
36 |
7 x 0.1241 |
0.3723 |
1.345 |
1468 |
287 |
1755 |
41900 |
0.0583 |
0.0759 |
1292 |
|
Rio Grande/TW |
1533.3 |
13 |
1.2043 |
1.3571 |
3 |
38 |
19 x 0.1012 |
0.5060 |
1.382 |
1449 |
519 |
1968 |
53200 |
0.0590 |
0.0760 |
1301 |
|
Schuylkill/TW |
1657.4 |
7 |
1.3020 |
1.3920 |
3 |
36 |
7 x 0.1280 |
0.3840 |
1.386 |
1563 |
305 |
1868 |
44000 |
0.0548 |
0.0717 |
1341 |
|
Pecos/TW |
1622 |
13 |
1.2739 |
1.4429 |
3 |
39 |
19 x 0.1064 |
0.5320 |
1.424 |
1533 |
574 |
2107 |
57500 |
0.0557 |
0.0720 |
1347 |
|
Pee Dee/TW |
1758.6 |
7 |
1.3810 |
1.4770 |
3 |
38 |
7 x 0.1319 |
0.3957 |
1.427 |
1658 |
324 |
1982 |
46700 |
0.0517 |
0.0679 |
1389 |
|
James/TW |
1730.6 |
13 |
1.3590 |
1.5314 |
3 |
34 |
19 x 0.1075 |
0.5375 |
1.470 |
1636 |
585 |
2221 |
59400 |
0.0522 |
0.0679 |
1400 |
|
Athabaska/TW |
1949.6 |
7 |
1.5312 |
1.6377 |
3 |
44 |
7 x 0.1392 |
0.4176 |
1.504 |
1838 |
361 |
2199 |
51900 |
0.0466 |
0.0608 |
1488 |
|
Cumberland/TW |
1926.9 |
13 |
1.5134 |
1.7049 |
3 |
42 |
19 x 0.1133 |
0.5665 |
1.545 |
1821 |
650 |
2471 |
65300 |
0.0469 |
0.0614 |
1491 |
|
Powder/TW |
2153.8 |
8 |
1.6912 |
1.8290 |
4 |
64 |
19 x 0.0961 |
0.4805 |
1.602 |
2030 |
468 |
2498 |
61100 |
0.0424 |
0.0554 |
1583 |
|
Santee/TW |
2627.3 |
8 |
2.0630 |
2.2268 |
4 |
64 |
19 x 0.1062 |
0.5310 |
1.762 |
2477 |
571 |
3048 |
74500 |
0.0348 |
0.0468 |
1768 |
Please Feel free to give your inquiry in the form below.we will reply you in 24 hours.
