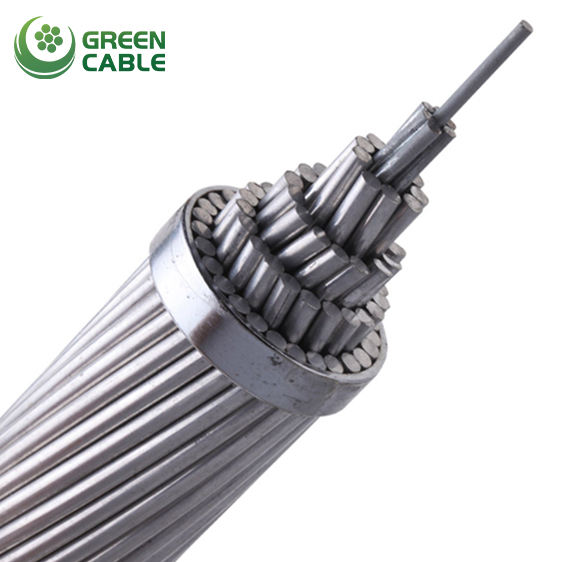

Aluminum Conductor Alloy Reinforced ACAR

Aluminum Conductor Alloy Reinforced (ACAR) cable has aluminum wires concentrically stranded around a Aluminum Alloy core.Aluminum wire is 1350 H-19, the same material with AAC, ACSR outer layer conductor wires. Aluminum Alloy core is high strength Aluminum-Magnesium-Silicon 6201-T81 53%IACS Alloy.ACAR has a lower maintenance revenue, using the same tower and pole as ACSR does. ACAR is excellent choice where lower price, higher DC current carrying capacity, longer operating time are desired in line design.

Send E-mail Get Price

Construction

Aluminum 1350-H19 wires, concentrically stranded around aluminum-alloy 6201-T81 core. Although the alloy strands generally comprise the core of the conductor, in some constructions they are distributed in layers throughout the aluminum 1350-H19 strands.

Standards

ASTM B524, IEC 61089

Size of conductor		Stranding		Overall Diameter	Area	Wire Diameter	Overall Diameter	Linear Mass	Rated Tensile Strength	Max D.C.Resistance at 20℃
KCMIL Or AWG	Cross Section	1350-H19	6201-T81	Overall Diameter	Area	Wire Diameter	Overall Diameter	Linear Mass	Rated Tensile Strength	Max D.C.Resistance at 20℃
	Square Inch			Inch	mmpingfang	mm	mm	kg/km	Dan	Ω/km
30.6	0.0240	4x0.0661	3x0.0661	0.198	15.5	1.679	5.03	43	367	1.983
4	0.0382	4x0.0772	3x0.0772	0.232	21.2	1.961	5.89	59	498	1.454
48.7	0.0382	4x0.0834	3x0.0834	0.250	24.7	2.118	6.35	68	573	1.246
2	0.0521	4x0.0974	3x0.0974	0.292	33.6	2.474	7.42	93	777	0.913
77.5	0.0608	4x0.1052	3x0.1052	0.316	39.3	2.672	8.03	109	893	0.721
1/0	0.0829	4x0.1228	3x0.1228	0.368	53.5	3.119	9.35	148	1195	0.575
123.3	0.0968	4x0.1327	3x0.1327	0.398	62.5	3.371	10.11	173	1395	0.492
2/0	0.1045	4x0.1379	3x0.1379	0.414	67.4	3.503	10.52	187	1470	0.455
155.4	0.1221	4x0.1490	3x0.1490	0.447	78.7	3.785	11.35	218	1700	0.390
3/0	0.1317	4x0.1548	3x0.1548	0.464	85	3.932	11.80	235	1820	0.361
195.7	0.1537	4x0.1672	3x0.1672	0.502	99.1	4.247	12.74	274	2130	0.310
4/0	0.1663	4x0.1739	3x0.1739	0.522	107	4.417	13.25	297	2300	0.286
246.9	0.1939	4x0.1878	3x0.1878	0.563	125	4.77	14.31	346	2682	0.245
250	0.1963	15x0.1147	4x0.1147	0.574	127	2.913	14.56	350	2430	0.235
250	0.1963	12x0.1147	7x0.1147	0.574	127	2.913	14.56	350	2750	0.240
300	0.2358	15x0.1257	4x0.1257	0.629	152	3.193	15.96	420	2885	0.195
300	0.2358	12x0.1257	7x0.1257	0.629	152	3.193	15.96	420	3275	0.200
350	0.2748	15x0.1357	4x0.1357	0.679	177	3.447	17.24	490	3315	0.168
350	0.2748	12x0.1451	7x0.1357	0.679	177	3.447	17.24	490	3735	0.172
400	0.3142	15x0.1451	4x0.1451	0.726	203	3.685	18.44	560	3745	0.147
400	0.3142	12x0.1451	7x0.1451	0.726	203	3.685	18.44	560	4230	0.135
450	0.3534	15x0.1539	4x0.1539	0.770	228	3.909	19.55	630	4150	0.130
450	0.3534	12x0.1539	7x0.1539	0.770	228	3.909	19.55	630	4710	0.133
500	0.3926	15x0.1622	4x0.1622	0.811	253	4.120	20.60	700	4620	0.117
500	0.3926	12x0.1622	7x0.1622	0.811	253	4.120	20.60	700	5240	0.120
500	0.3924	33x0.1162	4x0.1622	0.813	253	2.951	20.65	700	4440	0.116
500	0.3924	30x0.1162	7x0.1162	0.813	253	2.951	20.65	700	4795	0.117
500	0.3924	24x0.1162	13x0.1162	0.813	253	2.951	20.65	700	5285	0.120
500	0.3924	18x0.1162	19x0.1162	0.813	253	2.951	20.65	700	5860	0.123
500	0.4318	15x0.1701	4x0.1701	0.851	279	4.321	21.66	770	5060	0.107
500	0.4318	12x0.1701	7x0.1701	0.851	279	4.321	21.66	770	5770	0.110

ACAR
Aluminum Conductors Aluminum Alloy Reinforced ASTM B524
Size (kcmil)	Stranding		Diameter (ins.)			Weight Per 1000 ft. (lbs.)	Rated Strength (lbs.)	Resistance OHMS/1000 ft.		Allowable Ampacity+ (Amps)
	Stranding		Individual Wires		Comp. Cable			DC @ 20°C	AC @ 75°C
	EC	6201	6201	1350	Comp. Cable			DC @ 20°C	AC @ 75°C
355.0	12	7	0.1367	0.1367	0.683	332.1	8500	0.0514	0.0624	519
465.9	12	7	0.1566	0.1566	0.783	435.8	11000	0.0392	0.0477	616
503.6	12	7	0.1628	0.1628	0.814	471.1	11900	0.0362	0.0441	646
653.1	12	7	0.1854	0.1854	0.927	611.0	15400	0.0279	0.0342	760
739.8	30	7	0.1414	0.1414	0.990	692.7	15300	0.0240	0.0296	831
739.8	18	19	0.1414	0.1414	0.990	691.6	18800	0.0252	0.0308	814
853.7	30	7	0.1519	0.1519	1.063	799.3	17500	0.0208	0.0257	907
853.7	18	19	0.1519	0.1519	1.063	798.0	21500	0.0218	0.0268	890
927.2	30	7	0.1583	0.1583	1.108	868.2	19000	0.0192	0.0238	955
927.2	18	19	0.1583	0.1583	1.108	866.7	23400	0.0201	0.0247	936
1024.5	30	7	0.1664	0.1664	1.165	959.3	20900	0.0173	0.0216	1015
1024.5	18	19	0.1664	0.1664	1.165	957.7	25800	0.0182	0.0225	995
1081.0	30	7	0.1709	0.1709	1.196	1012.1	22100	0.0164	0.0205	1048
1081.0	18	19	0.1709	0.1709	1.196	1010.5	27200	0.0172	0.0213	1028
1109.0	30	7	0.1731	0.1731	1.212	1038.4	22700	0.0160	0.0200	1065
1109.0	18	19	0.1731	0.1731	1.212	1036.6	27900	0.0168	0.0208	1044
1172.0	30	7	0.1780	0.1780	1.246	1097.3	24000	0.0152	0.0190	1101
1172.0	18	19	0.1780	0.1780	1.246	1095.5	29500	0.0159	0.0198	1080
1197.0	30	7	0.1799	0.1799	1.259	1120.8	24500	0.0148	0.0187	1115
1197.0	18	19	0.1799	0.1799	1.259	1118.9	30200	0.0156	0.0194	1094
1280.0	30	7	0.1860	0.1860	1.302	1198.5	26200	0.0139	0.0175	1160
1280.0	18	7	0.1860	0.1860	1.302	1196.5	32200	0.0146	0.0182	1139
1361.0	42	19	0.1494	0.1494	1.344	1273.6	30300	0.0133	0.0168	1196
1527.0	42	19	0.1582	0.1582	1.424	1428.8	33600	0.0118	0.0151	1314
1703.0	42	19	0.1671	0.1671	1.504	1593.5	37500	0.0106	0.0137	1363
1933.0	42	19	0.1780	0.1780	1.602	1808.8	42500	0.00936	0.0123	1465
2267.0	42	19	0.1928	0.1928	1.735	2142.0	49900	0.00806	0.0108	1594
2493.0	72	19	0.1655	0.1655	1.821	2356.9	50400	0.00722	0.0099	1687
2493.0	54	37	0.1655	0.1655	1.821	2354.5	57600	0.00743	0.0101	1670
+Ampacity based on 75°C conductor temperature, 25°C ambient temperature,with 2 ft./sec. wind in the sun.

Aluminum Conductors Aluminum Alloy Reinforced IEC 61089
Characteristics of A1/A2 Conductors
Code number	Diameter		No. of wires		Areas		Linear mass kg/km		Rated strength kN	D.C resistance Ohm/km
	Wire mm	Cond. mm	A1	A2	A1 mm²	A2 mm²	Total mm²
	Wire mm	Cond. mm	A1	A2	A1 mm²	A2 mm²	Total mm²
16	1.76	5.28	4	3	9.73	7.3	17	46.6	3.85	1.7896
25	2.2	6.6	4	3	15.2	11.4	26.6	72.8	5.93	1.1453
40	2.78	8.35	4	3	24.3	18.3	42.6	116.5	9.25	0.7158
63	3.49	10.5	4	3	38.3	28.7	67.1	183.5	14.38	0.4545
100	4.4	13.2	4	3	60.8	45.6	106	291.2	22.52	0.2863
125	2.97	14.9	12	7	83.3	48.6	132	362.7	27.79	0.2302
160	3.36	16.8	12	7	107	62.2	169	464.2	35.04	0.1798
200	3.76	18.8	12	7	133	77.8	211	580.3	43.13	0.1439
250	4.21	21	12	7	167	97.2	264	725.3	53.92	0.1151
250	3.04	21.3	18	19	131	138	269	742.2	60.39	0.1154
315	3.34	23.4	30	7	263	61.3	324	892.6	60.52	0.0916
315	3.42	23.9	18	19	165	174	339	935.1	76.09	0.0916
400	3.76	26.3	30	7	334	77.8	411	1133.5	75.19	0.0721
400	3.85	27	18	19	210	221	431	1187.5	95.58	0.0721
450	3.99	27.9	30	7	375	87.6	463	1275.2	84.59	0.0641
450	4.08	28.6	18	19	236	249	485	1335.9	107.52	0.0641
500	4.21	29.4	30	7	417	97.3	514	1416.9	93.98	0.0577
500	4.31	30.1	18	19	262	277	539	1484.3	119.47	0.0577
560	4.45	31.2	30	7	467	109	576	1586.9	105.26	0.0515
560	3.45	31	54	7	504	65.4	570	1571.9	101.54	0.0516
630	3.71	33.4	42	19	454	205	660	1820.0	130.25	0.0458
630	3.79	34.1	24	37	271	417	688	1897.5	160.19	0.0458
710	3.94	35.5	42	19	512	232	743	2051.2	146.78	0.0407
710	4.02	36.2	24	37	305	470	775	2138.4	180.53	0.0407
800	4.18	37.6	42	19	577	261	838	2311.2	165.39	0.0361
800	4.27	38.4	24	37	344	530	873	2409.5	203.41	0.0361
900	4.43	39.9	42	19	649	294	942	2600.1	186.06	0.0321
900	3.66	40.2	54	37	567	388	955	2638.4	199.54	0.0321
1000	3.8	41.8	72	19	816	215	1032	2849.1	190.94	0.0289
1000	3.85	42.4	54	37	630	432	1061	2931.6	221.71	0.0289
1120	4.02	44.2	72	19	914	241	1155	3191.0	213.85	0.0258
1120	4.08	44.9	54	37	705	483	1189	3283.4	248.32	0.0258
1250	4.25	46.7	72	19	1020	269	1289	3561.4	238.68	0.0231
1250	4.31	47.4	54	37	787	539	1327	3664.5	277.14	0.0231
1400	4.5	49.4	72	19	1143	302	1444	3988.8	267.32	0.0207

Aluminum Conductors Aluminum Alloy Reinforced IEC 61089
Characteristics of A1/A3 Conductors
Code number	Diameter		No. of wires		Areas			Linear mass kg/km	Rated strength kN	D.C resistance Ohm/km
	Wire mm	Cond. mm	A1	A2	A1 mm²	A2 mm²	Total mm²
	Wire mm	Cond. mm	A1	A2	A1 mm²	A2 mm²	Total mm²
16	1.76	5.29	4	3	9.78	7.33	17.1	46.8	4.07	1.7896
25	2.21	6.62	4	3	15.3	11.5	26.7	73.1	6.29	1.1453
40	2.79	8.37	4	3	24.4	18.3	42.8	117.0	9.82	0.7158
63	3.5	10.5	4	3	38.5	28.9	67.4	184.3	14.8	0.4545
100	4.41	13.2	4	3	61.1	45.8	107	292.5	23.49	0.2863
125	2.98	14.9	12	7	83.7	48.8	132	364.1	29.29	0.2302
160	3.37	16.9	12	7	107	62.5	170	466.0	36.95	0.1798
200	3.77	18.8	12	7	134	78.1	212	582.5	44.78	0.1439
250	4.21	21.1	12	7	167	97.6	265	728.1	55.98	0.1151
250	3.05	21.4	18	19	132	139	271	746.0	64.67	0.1154
315	3.34	23.4	30	7	263	61.4	325	894.4	62.4	0.0916
315	3.43	24	18	19	166	175	341	940.0	81.48	0.0916
400	3.77	26.4	30	7	334	78	412	1135.8	76.82	0.0721
400	3.86	27	18	19	211	222	433	1193.7	100.3	0.0721
450	3.99	28	30	7	376	87.7	464	1277.8	86.42	0.0641
450	4.1	28.7	18	19	237	250	487	1342.9	112.84	0.0641
500	4.21	29.5	30	7	418	97.5	515	1419.8	96.03	0.0577
500	4.32	30.2	18	19	263	278	542	1492.1	125.38	0.0577
560	4.46	31.2	30	7	468	109	577	1590.1	107.55	0.0515
560	3.45	31.1	54	7	505	65.5	570	1573.9	103.53	0.0516
630	3.72	33.4	42	19	456	206	662	1826.0	134.59	0.0458
630	3.8	34.2	24	37	272	420	692	1909.0	169.14	0.0458
710	3.95	35.5	42	19	514	232	746	2057.8	151.68	0.0407
710	4.03	36.3	24	37	307	473	780	2151.4	190.61	0.0407
800	4.19	37.7	42	19	579	262	840	2318.7	170.9	0.0361
800	4.28	38.5	24	37	346	533	879	2424.2	214.78	0.0361
900	4.44	40	42	19	651	294	945	2608.5	192.27	0.0321
900	3.66	40.3	54	37	569	390	959	2649.5	207.79	0.0321
1000	3.8	41.8	72	19	818	216	1034	2855.4	195.47	0.0289
1000	3.86	42.5	54	37	632	433	1066	2943.9	230.88	0.0289
1120	4.02	44.3	72	19	916	242	1158	3198.1	218.92	0.0258
1120	4.09	45	54	37	708	485	1194	3297.2	258.58	0.0258
1250	4.25	46.8	72	19	1022	270	1292	3569.3	244.33	0.0231
1250	4.32	47.5	54	37	791	542	1332	3679.9	288.6	0.0231
1400	4.5	49.5	72	19	1145	302	1447	3997.6	273.65	0.0207
