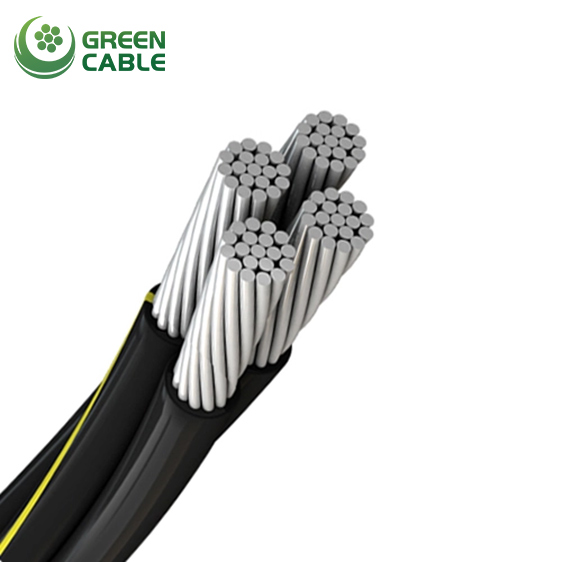

The aerial bundled cables are used for overhead distribution line and electrical installations with alternating power networks with nominal voltage U0/U 0.6/1kV or in direct power networks with maximum voltage according to land 0.9kV.
Phase Conductor: Circular stranded, rounded, compacted aluminum conductor
Neutral(Messenger) Conductor: Circular stranded, rounded, compacted aluminum conductor
Insulation: Black color Polyethylene(PE) or Cross-linked polyethylene(XLPE)
AS/NZS 3560.1
|
No. of Core |
Phase Core |
Neutral Core |
Complete Cable |
|||||||
|
No. & |
No. of Wire |
Dia. of Conductor |
Insulation |
No. & Section Area |
No. of Wire |
Dia. of Conductor |
Insulation |
Overall Dia. |
Weight |
|
|
mm2 |
mm2 |
No. |
mm |
mm |
mm2 |
No. |
mm |
mm |
mm |
kg/km |
|
2x16 |
1x16 |
7 |
4.7 |
1.3 |
1x16 |
7 |
4.7 |
1.3 |
14.6 |
132 |
|
4x16 |
3x16 |
7 |
4.7 |
1.3 |
1x16 |
7 |
4.7 |
1.3 |
17.6 |
263 |
|
2x25 |
1x25 |
7 |
6.0 |
1.3 |
1x25 |
7 |
6.0 |
1.3 |
17.2 |
189 |
|
3x25 |
2x25 |
7 |
6.0 |
1.3 |
1x25 |
7 |
6.0 |
1.3 |
18.5 |
283 |
|
4x25 |
3x25 |
7 |
6.0 |
1.3 |
1x25 |
7 |
6.0 |
1.3 |
20.8 |
378 |
|
2x35 |
1x35 |
7 |
7.0 |
1.3 |
1x35 |
7 |
7.0 |
1.3 |
19.2 |
249 |
|
3x35 |
2x35 |
7 |
7.0 |
1.3 |
1x35 |
7 |
7.0 |
1.3 |
20.7 |
373 |
|
4x35 |
3x35 |
7 |
7.0 |
1.3 |
1x35 |
7 |
7.0 |
1.3 |
23.2 |
497 |
|
2x50 |
1x50 |
7 |
8.1 |
1.5 |
1x50 |
7 |
8.1 |
1.5 |
22.2 |
334 |
|
3x50 |
2x50 |
7 |
8.1 |
1.5 |
1x50 |
7 |
8.1 |
1.5 |
23.9 |
501 |
|
4x50 |
3x50 |
7 |
8.1 |
1.5 |
1x50 |
7 |
8.1 |
1.5 |
26.8 |
668 |
|
4x70 |
3x70 |
19 |
10.0 |
1.5 |
1x70 |
19 |
10.0 |
1.5 |
31.4 |
933 |
|
2x95 |
1x95 |
19 |
11.6 |
1.7 |
1x95 |
19 |
11.6 |
1.7 |
30.0 |
638 |
|
4x95 |
3x95 |
19 |
11.6 |
1.7 |
1x95 |
19 |
11.6 |
1.7 |
36.2 |
1276 |
|
4x120 |
3x120 |
19 |
13.0 |
1.7 |
1x120 |
19 |
13.0 |
1.7 |
39.6 |
1579 |
|
4x150 |
3x150 |
19 |
14.6 |
1.7 |
1x150 |
19 |
14.6 |
1.7 |
43.5 |
1883 |
