CAAI-S Cables De Aluminio Aislado, High Strength

CAAI-S Cables De Aluminio Aislado, High Strength

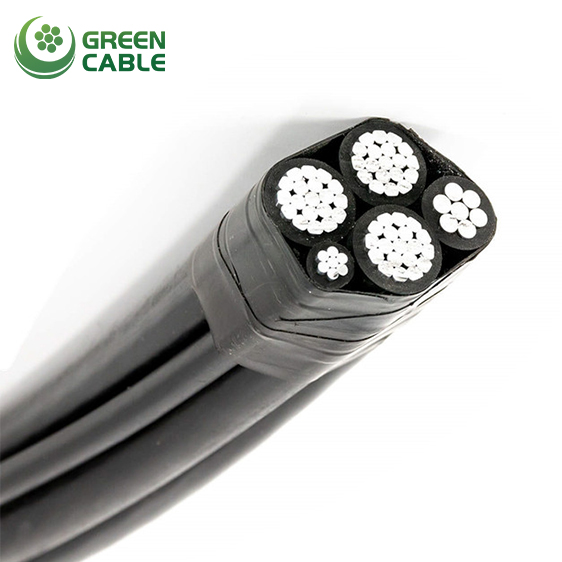

For use in overhead distribution system at 600/1000 volts or less, as the connection from the secondary power line or pole mounted transformer to the service head or entrance conductors at buildings. The neutral core are designed to be bare or insulated galvanized steel conductor to perform as supporting core higher strength than aluminum alloy 6201-T81 conductor.

Send E-mail Get Price

Construction

CAAI-S cable consisted of one or two or three phase conductors(aluminum 1350-H19) pluse one or two lighting conductors(aluminum 1350 H-19), concentrically stranded around the insulated neutral conductor(galvanized steel strand).

Standards

NTR 370.254, ICEA S-76-474



CAAI-S CABLE - Phase Conductor

Phase conductor (Aluminum Conductor )

Size

Construction of Conductor

XLPE Insulation

Approx.

Max. DC Resistance

No. of Wire

Dia. of Wire

Approx. Conductor Dia.

Nominal Thickness

Insulation Dia.

Weight

 at 20°C of conductor

mm²

No.

mm

mm

mm

mm

kg/km

Ω/km

16

7

1.72

4.8

1.14

7.08

63.35

1.91

25

7

2.18

6

1.14

8.28

91.75

1.2

35

7

2.55

7

1.14

9.28

120.56

0.868

50

7

2.97

8

1.52

11.04

168.55

0.641

70

19

2.2

10

1.52

13.04

235.51

0.443

95

19

2.58

11.6

1.52

14.64

312.79

0.32

120

19

2.88

13

2.03

17.06

413.94

0.253



CAAI-S CABLE - Neutral Conductor

Phase conductor (Aluminum Conductor )

Size

Construction of Conductor

XLPE Insulation

Approx.

Max. DC Resistance

No. of Wire

Dia. of Wire

Approx. Conductor Dia.

Nominal Thickness

Insulation Dia.

Weight

 at 20°C of conductor

mm²

No.

mm

mm

mm

mm

kg/km

Ω/km

16

7

1.72

4.8

1.14

7.08

63.35

1.91

25

7

2.18

6

1.14

8.28

91.75

1.2

35

7

2.55

7

1.14

9.28

120.56

0.868

50

7

2.97

8

1.52

11.04

168.55

0.641

70

19

2.2

10

1.52

13.04

235.51

0.443

95

19

2.58

11.6

1.52

14.64

312.79

0.32

120

19

2.88

13

2.03

17.06

413.94

0.253



CAAI-S CABLE - Street Lighting Conductor

Street Lighting Conductor ( Aluminum Conductor )

Size

Construction of Conductor

XLPE Insulation

Approx.

Max. DC Resistance

No. of Wire

Dia. of Wire

Approx. Conductor Dia.

Nominal Thickness

Insulation Dia.

Weight

at 20°C of Conductor

mm²

No.

mm

mm

mm

mm

kg/km

Ω/km

16

7

1.72

4.8

1.14

7.08

63.35

1.91

25

7

2.18

6

1.14

8.28

91.75

1.2



CAAI-S CABLE - Complete Cable

Size

No. of cores

Phase
Cond.
Cross
Section
[mm²]

Cond.
Diam.
[mm]

Min.
insulation
thick.
[mm]

Messenger
conduct.
diam.
[mm]

Public
lightin
g

Nom.
outer
diam.
[mm]

Approx.
weight
[kg/km]

 2×16+1×16 +P3,2

2

16

5

1,14

3,2

1 x 16

16,6

261

 2×16+2x16+P3,2

2

16

5

1,14

3,2

2 x 16

18,8

329

 2X25+1X16+P3.2

2

25

5,8

1,14

3,2

1 x 16

21,3

316

 3×16+1x16+P2,7

3

16

5

1,14

2,7

1 x 16

18,5

315

 3×16+1x16 +P3,6

3

16

5

1,14

3,6

1 x 16

18,9

346

 3×16+2x16+P3,2

3

16

5

1,14

3,2

2 x 16

22,3

396

 3×25+1x16+P3,2

3

25

5,8

1,14

3,2

1 x 16

21,3

411

 3×25+2x16+P3,2

3

25

5,8

1,14

3,2

2 x 16

23,3

478

 3×35+1x25+P3.2

3

35

6,9

1,14

3,2

1 x 25

23,8

533

 3×35+2x16+P3,2

3

35

6,9

1,14

3,2

2 x 16

24,7

573

3x35+2x25+P3,6

3

35

6,9

1,14

3,6

2 x 25

26,1

645

 3×35+2x25+P7.9

3

35

6,9

1,14

7,9

2 x 25

26,7

907

 3×50+1x16+P4,8

3

50

8,1

1,52

4,8

1 x 16

26,3

724

 3×50+1x25+P4.8

3

50

8,1

1,52

4,8

1 x 25

27,2

751

 3×50+2x16+P3,2

3

50

8,1

1,52

3,2

2 x 16

27,6

725

 3×50+2x16+P4,8

3

50

8,1

1,52

4,8

2 x 16

27,6

791

 3×70+1x16+P3,6

3

70

9,8

1,52

3,6

1 x 16

29,1

881

 3×70+1x25+P3,6

3

70

9,8

1,52

3,6

1 x 25

30,0

909

 3×70+1x35+P3,6

3

70

9,8

1,52

3,6

1 x 35

31,1

940

 3×70+1x50+P3,6

3

70

9,8

1,52

3,6

1 x 50

33,3

991

3x70+2x16+P6,4

3

70

9,8

1,52

6,4

2 x 16

30,4

1076

 3×70+2x35+P6,4

3

70

9,8

1,52

6,4

2 x 35

32,9

1194

 3×95+1x16+P3,6

3

95

11,5

1,52

3,6

1 x 16

32,0

1129

 3×120+1x16+P6,4

3

120

12,8

2,03

6,4

1 x 16

36,7

1542

 3×120+1x35+P6.4

3

120

12,8

2,03

6,4

1 x 35

37,7

1600

 3×120+1x70+P6,4

3

120

12,8

2,03

6,4

1 x 70

41,7

1720

 3×120+2x25+P6,4

3

120

12,8

2,03

6,4

2 x 25

36,7

1664
