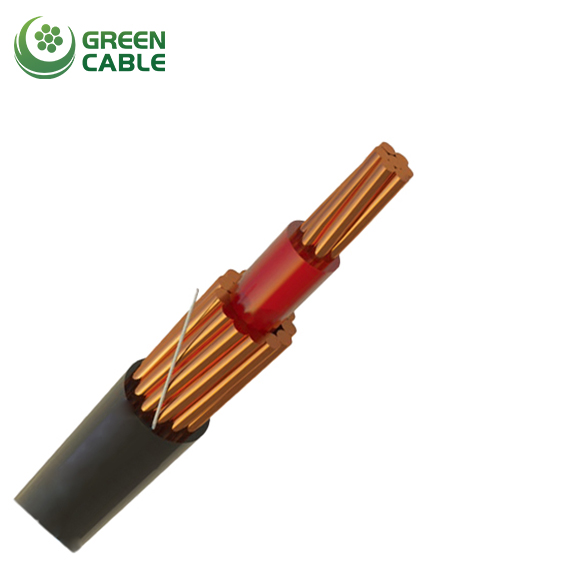

The concentric cables are used as electric service entrance from the power distribution network until the meter panel (especially where it is required to prevent “black”losses or electric power robbery), and as feeder cable from the meters panel until the panel or general distribution panel, just as it is specified in the National Electrical Code. This type of conductor can be used in dry and wet places, directly buried or outdoors, its maximum temperature of operation is 75℃ and its voltage of service for all the application is 600v.
1. Earth Conductor: Solid Aluminum wire;
2. Insulation: XLPE;
3. Phase Conductor: Solid Aluminum wire;
4. Communication Core: Solid Copper wire;
5. Insulation: LLDPE;
6. Ripcord: Nylon.
|
Item |
Description |
Unit |
Technical Data |
|
1 |
Standard |
|
SABS 1507,NRS 063 IEC60502/228 |
|
2 |
Voltage |
V |
600/1000 |
|
3 |
Cross Section Area |
mm² |
16 |
|
4 |
Phase conductor |
||
|
4-1 |
Material |
|
Hard drawn solid aluminum wire |
|
4-2 |
Stranding and wire Diameter |
No./mm |
1/4.5 |
|
4-3 |
Conductor Diameter (approx..) |
mm |
4.5 |
|
5 |
Insulation(Phase core) |
||
|
5-1 |
Material |
|
XLPE (RED) |
|
5-2 |
Nominal Thickness |
mm |
1.0 |
|
5-3 |
Outer Diameter (approx..) |
mm |
6.5 |
|
6 |
Earth Conductor |
||
|
6-1 |
Material |
|
Solid aluminum wire |
|
6-2 |
Stranding and Wire Diameter |
No./mm |
12/1.7 |
|
7 |
Communication wire |
||
|
7-1 |
No.of core& Cross Section Area |
No. x mm2 |
4x0.5 |
|
7-2 |
Material |
|
Solid copper wire |
|
7-3 |
Stranding and Wire Diameter |
No./mm |
1/0.8 |
|
8 |
Insulation (Communication Wire) |
||
|
8-1 |
Material |
|
LLDPE (Red, Green, White, Blue) |
|
8-2 |
Outer Diameter(approx..) |
mm |
1.13 |
|
9 |
Ripcord |
|
Nylon |
|
10 |
Binder Tape |
|
Polyester tape |
|
11 |
Outer Sheath |
||
|
11-1 |
Material |
|
UV resistant LLDPE(black) |
|
11-2 |
Nominal Thickness |
mm |
1.6 |
|
12 |
Overall Diameter ( approx..) |
mm |
13.2 |
|
13 |
Max.Conductor DC Resistance at 20℃ |
||
|
13-1 |
Phase Conductor |
Ω/km |
1.91 |
|
13-2 |
Earth Conductor |
Ω/km |
1.068 |
|
13-3 |
Earth Wire |
Ω/km |
12.7 |
|
13-4 |
Communication Wire |
Ω/km |
36.0 |
