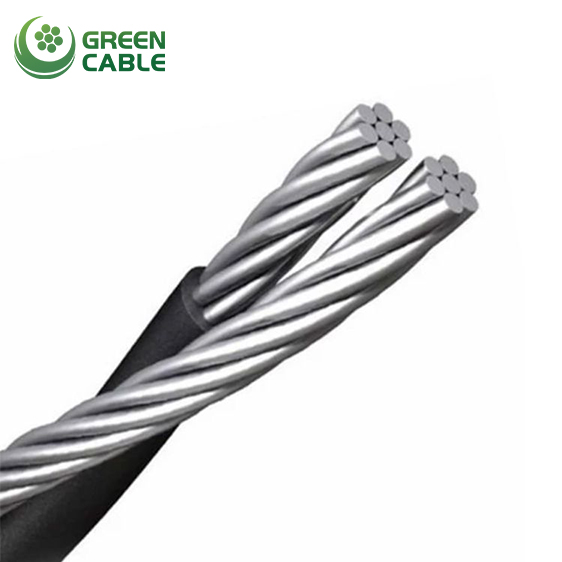

To supply 120volt aerial service for temporary service at construction sites, outdoor or street lighting. For service at 600 volt or lower at a conductor temperature of 75℃ maximum.
Concentric strand or compressed 1350-H19 conductor, polyethylene or crosslinked polyethylene insulation, concentric strand AAC,ACSR, or 6201 alloy neutral messenger.
ASTM B-230, B-231, B-232 and B-399
|
Code Name |
Phase Conductors |
Bare Nutural |
Weight |
Ampacity |
||||||
|
Size&No.of wires |
Insulation Thickness |
Nonimal Diameter |
||||||||
|
BARE |
OD |
Size&No. of wires |
Rated strength |
XLPE |
Aluminum |
Total |
||||
|
|
|
mm |
mm |
mm |
|
Kg |
Kg/km |
Kg/km |
Kg/km |
A |
|
AAC |
||||||||||
|
Pekingese |
6-solid |
1.14 |
4.1 |
6.4 |
6-7 |
255 |
20.8 |
72.9 |
94 |
78 |
|
Collie |
6-7 |
1.14 |
4.6 |
6.9 |
6-7 |
255 |
23.8 |
72.9 |
97 |
78 |
|
Cocker |
6-7 |
1.52 |
4.6 |
7.7 |
6-7 |
255 |
32.7 |
72.9 |
106 |
78 |
|
Dachshund |
4-sold |
1.14 |
5.2 |
7.5 |
6-7 |
400 |
26.8 |
114.6 |
141 |
103 |
|
Spaniel |
4-7 |
1.14 |
5.9 |
8.2 |
6-7 |
400 |
29.8 |
116.1 |
146 |
103 |
|
Cairn |
4-7 |
1.52 |
5.9 |
8.9 |
6-7 |
400 |
40.2 |
116.1 |
156 |
103 |
|
Doberman |
2-7 |
1.14 |
7.4 |
9.7 |
2-7 |
612 |
38.7 |
184.5 |
223 |
136 |
|
Airedale |
1-19 |
1.52 |
8.4 |
11.5 |
1-7 |
- |
56.5 |
233.6 |
290 |
158 |
|
Basset |
1/0-7 |
1.52 |
9.3 |
12.4 |
1/0-7 |
903 |
64.0 |
294.7 |
359 |
182 |
|
Malemure |
1/0-19 |
1.52 |
9.4 |
12.5 |
1/0-7 |
903 |
64.0 |
294.7 |
359 |
182 |
|
AAAC |
||||||||||
|
Chihuahua |
6-solid |
1.14 |
4.1 |
6.4 |
6-7 |
499 |
20.8 |
72.9 |
94 |
78 |
|
Vizsla |
6-7 |
1.14 |
4.6 |
6.9 |
6-7 |
499 |
23.8 |
72.9 |
97 |
78 |
|
Harrier |
4-solid |
1.14 |
5.2 |
7.5 |
4-7 |
798 |
26.8 |
116.1 |
143 |
103 |
|
Whippet |
4-7 |
1.14 |
5.9 |
8.2 |
4-7 |
798 |
29.8 |
116.1 |
146 |
103 |
|
Schnauzer |
2-7 |
1.14 |
7.4 |
9.7 |
2-7 |
1270 |
39.7 |
184.5 |
223 |
136 |
|
Afghan |
1/0-7 |
1.52 |
9.3 |
12.4 |
1/0-7 |
2023 |
64.0 |
296.1 |
360 |
182 |
|
Heeler |
1/0-19 |
1.52 |
9.4 |
12.5 |
1/0-7 |
2023 |
64.0 |
296.1 |
360 |
182 |
|
ACSR |
||||||||||
|
Setter |
6-solid |
1.14 |
4.1 |
6.4 |
6/6/01 |
540 |
20.8 |
72.9 |
94 |
78 |
|
Shepherd |
6-7 |
1.14 |
4.6 |
6.9 |
6/6/01 |
540 |
23.8 |
72.9 |
97 |
78 |
|
Retriever |
6-7 |
1.52 |
4.6 |
7.7 |
6/6/01 |
540 |
32.7 |
72.9 |
106 |
78 |
|
Eskimo |
4-solid |
1.14 |
5.2 |
7.5 |
4/6/01 |
844 |
26.8 |
114.6 |
141 |
103 |
|
Terrier |
4-7 |
1.14 |
5.9 |
8.2 |
4/6/01 |
844 |
29.8 |
116.1 |
146 |
103 |
|
Yorkshirc |
4-7 |
1.52 |
5.9 |
8.9 |
4/6/01 |
844 |
40.2 |
116.1 |
156 |
103 |
|
Chow |
2-7 |
1.14 |
7.4 |
9.7 |
2/6/01 |
1293 |
38.7 |
184.6 |
223 |
136 |
|
Labrador |
1-19 |
1.52 |
8.4 |
11.5 |
1/6/01 |
1610 |
56.5 |
233.6 |
290 |
158 |
|
Bloodhound |
1/0-7 |
1.52 |
9.3 |
12.4 |
1/0-6/1 |
1987 |
64.0 |
294.7 |
359 |
182 |
|
Bull |
18/0-19 |
1.52 |
9.4 |
12.5 |
1/0-6/1 |
1987 |
64.0 |
294.7 |
359 |
182 |
