Mainly used in power stations, mass transit underground passenger systems, airports, petrochemical plants,hotels, hospitals and high-rise buildings.

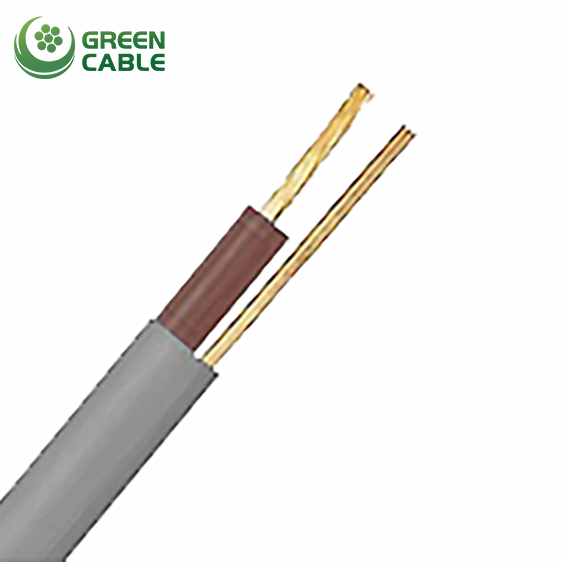

Conductor : Annealed copper conductor, solid according to BS EN 60228 class 1.
Fire Barrier : Mica glass tape.
Insulation : XLPE type GP 8 according to BS 7655-1.3. Crosslinked polyolefin material type EI 5 according to EN 50363-5 can be offered as option.
CPC (Circuit Protective Conductor) : Uninsulated copper conductor.
Outer Sheath : Extruded LSZH type LTS 2 according to BS 7655-6.1.
Outer Sheath Option : UV resistance, hydrocarbon resistance, oil resistance, anti-rodent and anti-termite
properties can be offered as option.
BS 7211
| Conductor |
FFX300 05mRZ1-U |
|||||||
|
No. of Cores × Cross-sectional Area |
Conductor Class |
Nominal Insulation Thickness |
Crosssectional Area of CPC |
Class of CPC |
Nominal Sheath Thickness |
Min. Overall Dimensions |
Max. Overall Dimensions |
Approx. Weight |
|
No.×mm² |
|
mm |
mm² |
|
mm |
mm |
mm |
kg/km |
|
1×1.0 |
1 |
0.70 |
1.0 |
1 |
0.9 |
5.1x6.2 |
6.0x7.3 |
66 |
|
1×1.5 |
1 |
0.70 |
1.0 |
1 |
0.9 |
5.4x6.4 |
6.3x7.6 |
74 |
| Conductor |
FFX200 05mRZ1-U/R |
|||||||
|
No. of Cores × Cross-sectional Area |
Conductor Class |
Nominal Insulation Thickness |
Crosssectional Area of CPC |
Class of CPC |
Nominal Sheath Thickness |
Min. Overall Dimensions |
Max. Overall Dimensions |
Approx. Weight |
|
No.×mm² |
|
mm |
mm² |
|
mm |
mm |
mm |
kg/km |
|
2×1.0 |
1 |
0.7 |
1.0 |
1 |
0.9 |
5.1×9.6 |
6.0×11.2 |
84 |
|
2×1.5 |
1 |
0.7 |
1.0 |
1 |
0.9 |
5.4×10.1 |
6.3×11.7 |
101 |
|
2×2.5 |
1 |
0.7 |
1.5 |
1 |
1.0 |
5.9×11.3 |
7.0×12.2 |
136 |
|
3×1.0 |
1 |
0.7 |
1.0 |
1 |
0.9 |
5.1×13.0 |
6.0×15.1 |
108 |
|
3×1.5 |
1 |
0.7 |
1.0 |
1 |
0.9 |
5.4×13.7 |
6.3×15.9 |
135 |
|
3×2.5 |
1 |
0.7 |
1.5 |
1 |
1.0 |
5.9×15.0 |
7.0×17.6 |
190 |
|
2×1.0 |
2 |
0.7 |
1.0 |
1 |
0.9 |
5.2×9.8 |
6.1×11.4 |
89 |
|
2×1.5 |
2 |
0.7 |
1.0 |
1 |
0.9 |
5.5×10.3 |
6.4×12.0 |
107 |
|
2×2.5 |
2 |
0.7 |
1.5 |
1 |
1.0 |
6.0×11.5 |
7.1×13.4 |
141 |
|
2×4 |
2 |
0.7 |
1.5 |
1 |
1.0 |
6.5×12.4 |
7.7×14.6 |
181 |
|
2×6 |
2 |
0.7 |
2.5 |
1 |
1.1 |
7.2×14.0 |
8.5×16.6 |
256 |
|
2×10 |
2 |
0.7 |
4.0 |
2 |
1.2 |
8.3×16.5 |
9.8×19.5 |
406 |
|
2×16 |
2 |
0.7 |
6.0 |
2 |
1.3 |
9.4×19.0 |
11.1×22.5 |
576 |
|
3×4 |
2 |
0.7 |
1.5 |
1 |
1.0 |
6.5×17.0 |
7.7×19.9 |
216 |
|
3×6 |
2 |
0.7 |
2.5 |
1 |
1.1 |
7.2×19.2 |
7.5×22.5 |
311 |
|
3×10 |
2 |
0.7 |
4.0 |
2 |
1.2 |
8.3×22.5 |
9.8×26.6 |
460 |
|
3×16 |
2 |
0.7 |
6.0 |
2 |
1.3 |
9.4×25.8 |
11.1×30.6 |
690 |
| Conductor |
FFX300 07mRZ1-U/R |
|||||
|
No. of Cores × Cross-sectional Area |
Conductor Class |
Nominal Insulation Thickness |
Nominal Sheath Thickness |
Min. Overall Diameter |
Max. Overall Diameter |
Approx. Weight |
|
No.×mm² |
|
mm |
mm |
mm |
mm |
kg/km |
|
1×1.0 |
1 |
0.7 |
0.8 |
4.9 |
5.8 |
30 |
|
1×1.5 |
1 |
0.7 |
0.8 |
5.2 |
6.0 |
38 |
|
1×2.5 |
1 |
0.7 |
0.8 |
5.6 |
6.5 |
51 |
|
1×4 |
1 |
0.7 |
0.8 |
6.2 |
7.3 |
70 |
|
1×6 |
1 |
0.7 |
0.8 |
6.7 |
7.8 |
95 |
|
1×1.0 |
2 |
0.7 |
0.8 |
5.0 |
5.9 |
35 |
|
1×1.5 |
2 |
0.7 |
0.8 |
5.3 |
6.2 |
43 |
|
1×2.5 |
2 |
0.7 |
0.8 |
5.7 |
6.6 |
56 |
|
1×4 |
2 |
0.7 |
0.9 |
6.3 |
7.4 |
77 |
|
1×6 |
2 |
0.7 |
0.9 |
6.9 |
8.1 |
104 |
|
1×10 |
2 |
0.7 |
0.9 |
7.7 |
9.1 |
147 |
|
1×16 |
2 |
0.7 |
0.9 |
8.6 |
10.2 |
211 |
|
1×25 |
2 |
0.9 |
1.0 |
10.4 |
12.4 |
325 |
|
1×35 |
2 |
0.9 |
1.1 |
11.6 |
13.8 |
489 |
| Conductor |
FFX200 07mRZ1-U/R |
||||||
|
No. of Cores × Cross-sectional Area |
Conductor Class |
Nominal Insulation Thickness |
Nominal Inner Covering Thickness |
Nominal Sheath Thickness |
Min. Overall Diameter |
Max. Overall Diameter |
Approx. Weight |
|
No.×mm² |
|
mm |
mm |
mm |
mm |
mm |
kg/km |
|
2×1.0 |
1 |
0.7 |
0.4 |
1.2 |
9.1 |
11.5 |
102 |
|
2×1.5 |
1 |
0.7 |
0.4 |
1.2 |
9.6 |
12.1 |
129 |
|
2×2.5 |
1 |
0.7 |
0.4 |
1.2 |
10.4 |
13.0 |
174 |
|
2×4 |
1 |
0.7 |
0.4 |
1.2 |
11.2 |
14.1 |
221 |
|
2×6 |
1 |
0.7 |
0.4 |
1.2 |
12.2 |
15.2 |
281 |
|
2×10 |
1 |
0.7 |
0.4 |
1.4 |
14.1 |
18.0 |
458 |
|
2×1.0 |
2 |
0.7 |
0.4 |
1.2 |
9.3 |
11.7 |
122 |
|
2×1.5 |
2 |
0.7 |
0.4 |
1.2 |
9.8 |
12.3 |
146 |
|
2×2.5 |
2 |
0.7 |
0.4 |
1.2 |
10.5 |
13.3 |
192 |
|
2×4 |
2 |
0.7 |
0.4 |
1.2 |
11.5 |
14.4 |
248 |
|
2×6 |
2 |
0.7 |
0.4 |
1.2 |
12.6 |
15.7 |
318 |
|
2×10 |
2 |
0.7 |
0.6 |
1.4 |
14.7 |
18.7 |
508 |
|
2×16 |
2 |
0.7 |
0.6 |
1.4 |
16.4 |
20.8 |
692 |
|
2×25 |
2 |
0.9 |
0.8 |
1.4 |
19.7 |
25.2 |
1063 |
|
2×35 |
2 |
0.9 |
0.8 |
1.6 |
22.0 |
28.0 |
1155 |
|
3×1.0 |
1 |
0.7 |
0.4 |
1.2 |
9.7 |
12.2 |
122 |
|
3×1.5 |
1 |
0.7 |
0.4 |
1.2 |
10.2 |
12.8 |
155 |
|
3×2.5 |
1 |
0.7 |
0.4 |
1.2 |
11.0 |
13.8 |
212 |
|
3×4 |
1 |
0.7 |
0.4 |
1.2 |
12.0 |
14.9 |
274 |
|
3×6 |
1 |
0.7 |
0.4 |
1.2 |
13.4 |
16.6 |
401 |
|
3×10 |
1 |
0.7 |
0.6 |
1.4 |
15.0 |
19.1 |
574 |
|
3×1.0 |
2 |
0.7 |
0.4 |
1.2 |
9.9 |
12.4 |
140 |
|
3×1.5 |
2 |
0.7 |
0.4 |
1.2 |
10.4 |
13.1 |
168 |
|
3×2.5 |
2 |
0.7 |
0.4 |
1.2 |
11.2 |
14.1 |
227 |
|
3×4 |
2 |
0.7 |
0.4 |
1.2 |
12.3 |
15.3 |
296 |
|
3×6 |
2 |
0.7 |
0.4 |
1.4 |
13.8 |
17.2 |
401 |
|
3×10 |
2 |
0.7 |
0.6 |
1.4 |
15.7 |
19.9 |
624 |
|
3×16 |
2 |
0.7 |
0.6 |
1.4 |
17.5 |
22.1 |
867 |
|
3×25 |
2 |
0.9 |
0.8 |
1.4 |
21.1 |
26.8 |
1338 |
|
3×35 |
2 |
0.9 |
0.8 |
1.6 |
23.5 |
29.8 |
1585 |
|
4×1.0 |
1 |
0.7 |
0.4 |
1.2 |
10.5 |
13.1 |
146 |
|
4×1.5 |
1 |
0.7 |
0.4 |
1.2 |
11.1 |
13.8 |
186 |
|
4×2.5 |
1 |
0.7 |
0.4 |
1.2 |
12.0 |
15.0 |
258 |
|
4×4 |
1 |
0.7 |
0.4 |
1.2 |
13.1 |
16.2 |
348 |
|
4×6 |
1 |
0.7 |
0.4 |
1.4 |
14.6 |
18.5 |
463 |
|
4×10 |
1 |
0.7 |
0.6 |
1.4 |
16.5 |
20.8 |
710 |
|
4×1.0 |
2 |
0.7 |
0.4 |
1.2 |
10.7 |
13.4 |
166 |
|
4×1.5 |
2 |
0.7 |
0.4 |
1.2 |
11.3 |
14.1 |
201 |
|
4×2.5 |
2 |
0.7 |
0.4 |
1.2 |
12.3 |
15.2 |
274 |
|
4×4 |
2 |
0.7 |
0.4 |
1.2 |
13.4 |
16.6 |
362 |
|
4×6 |
2 |
0.7 |
0.6 |
1.4 |
15.1 |
19.1 |
508 |
|
4×10 |
2 |
0.7 |
0.6 |
1.4 |
17.2 |
21.6 |
770 |
|
4×16 |
2 |
0.7 |
0.6 |
1.4 |
19.3 |
24.2 |
1078 |
|
4×25 |
2 |
0.9 |
0.8 |
1.6 |
23.6 |
29.9 |
1602 |
|
4×35 |
2 |
0.9 |
1.0 |
1.6 |
25.9 |
33.1 |
2076 |
|
5×1.0 |
1 |
0.7 |
0.4 |
1.2 |
11.5 |
14.2 |
177 |
|
5×1.5 |
1 |
0.7 |
0.4 |
1.2 |
12.1 |
15.0 |
228 |
|
5×2.5 |
1 |
0.7 |
0.4 |
1.2 |
13.2 |
16.3 |
318 |
|
5×4 |
1 |
0.7 |
0.4 |
1.4 |
14.7 |
18.6 |
445 |
|
5×6 |
1 |
0.7 |
0.6 |
1.4 |
16.0 |
20.2 |
574 |
|
5×10 |
1 |
0.7 |
0.6 |
1.4 |
18.1 |
22.7 |
887 |
|
5×1.0 |
2 |
0.7 |
0.4 |
1.2 |
11.7 |
14.6 |
203 |
|
5×1.5 |
2 |
0.7 |
0.4 |
1.2 |
12.4 |
15.3 |
247 |
|
5×2.5 |
2 |
0.7 |
0.4 |
1.2 |
13.4 |
16.6 |
340 |
|
5×4 |
2 |
0.7 |
0.6 |
1.4 |
15.1 |
19.1 |
483 |
|
5×6 |
2 |
0.7 |
0.6 |
1.4 |
16.5 |
20.8 |
633 |
|
5×10 |
2 |
0.7 |
0.6 |
1.4 |
18.9 |
23.6 |
968 |
|
5×16 |
2 |
0.7 |
0.8 |
1.4 |
21.2 |
26.9 |
1359 |
|
5×25 |
2 |
0.9 |
1.0 |
1.6 |
26.0 |
33.2 |
1899 |
|
5×35 |
2 |
0.9 |
1.0 |
1.6 |
28.6 |
36.3 |
2539 |
