Mainly used in power stations, mass transit underground passenger systems, airports, petrochemical plants,hotels, hospitals and high-rise buildings.

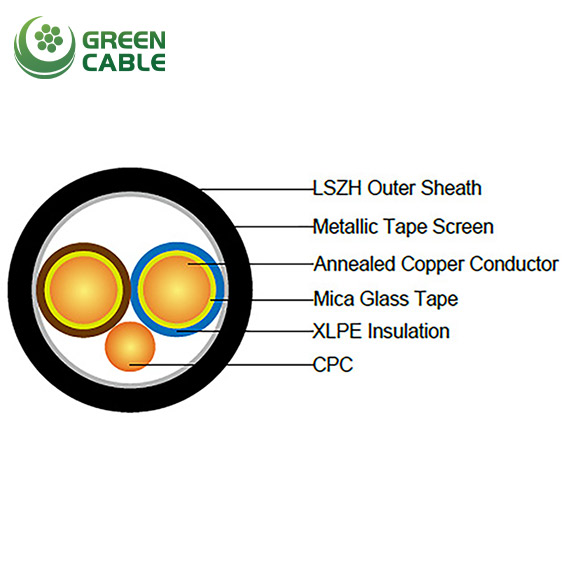

Conductor : Tinned annealed copper conductor, solid or stranded according to BS EN 60228 class 1, class 2 or class 5.
Fire Barrier : Mica glass tape.
Insulation : Thermosetting XLPE type GP 8 according to BS 7655-1.3. Crosslinked polyolefin material type EI 5 according to EN 50363-5 or crosslinked elastomeric GP 4/GP 6 according to BS 7655-1.2 can be offered as option.
CPC (Circuit Protective Conductor) : Uninsulated tinned annealed copper conductor conforming to BS EN 13630:2002.
Screen : One or more metallic or laminated metallic tape(s) shall be applied, either longitudinally or helically or as a combination of both, with the metallic element in contact with the uninsulated circuit protective conductor.
Outer Sheath : LSZH type LTS 3 according to BS 7655-6.1.
Outer Sheath Option : UV resistance, hydrocarbon resistance, oil resistance, anti-rodent and anti-termite.
properties can be offered as option.

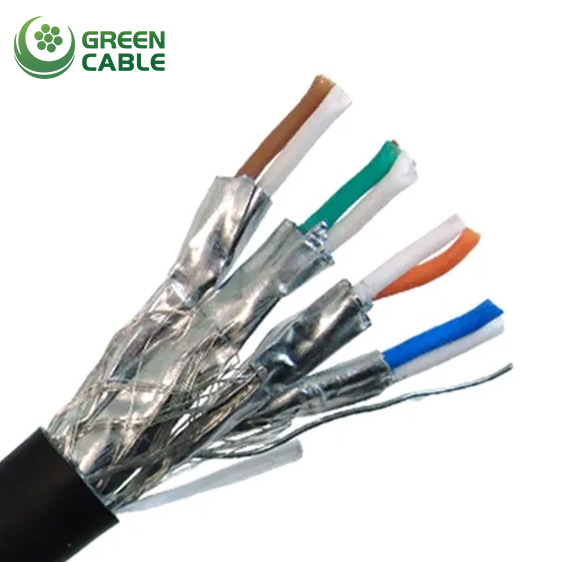

BS 8436
| Conductor |
FFX200 05mROZ1-U/R/K |
||||
|
No. of Cores × Cross-sectional Area |
Conductor Class |
Nominal Insulation Thickness |
Nominal Sheath Thickness |
Approx. Overall Diameter |
Approx. Weight |
|
No.×mm² |
|
mm |
mm |
mm |
kg/km |
|
2×1.0 |
1/2/5 |
0.6 |
0.9 |
9.1 |
104 |
|
2×1.5 |
1/2/5 |
0.7 |
0.9 |
10.0 |
127 |
|
2×2.5 |
1/2/5 |
0.7 |
1.0 |
11.0 |
169 |
|
2×4 |
1/2/5 |
0.7 |
1.1 |
12.3 |
229 |
|
3×1.0 |
1/2/5 |
0.6 |
0.9 |
9.6 |
126 |
|
3×1.5 |
1/2/5 |
0.7 |
0.9 |
10.6 |
159 |
|
3×2.5 |
1/2/5 |
0.7 |
1.0 |
11.7 |
214 |
|
3×4 |
1/2/5 |
0.7 |
1.1 |
13.1 |
297 |
|
4×1.0 |
1/2/5 |
0.6 |
1.0 |
10.5 |
153 |
|
4×1.5 |
1/2/5 |
0.7 |
1.0 |
11.6 |
195 |
|
4×2.5 |
1/2/5 |
0.7 |
1.1 |
12.8 |
263 |
|
4×4 |
1/2/5 |
0.7 |
1.2 |
14.4 |
366 |
