Mainly used in power stations, mass transit underground passenger systems, airports, petrochemical plants,hotels, hospitals and high-rise buildings.

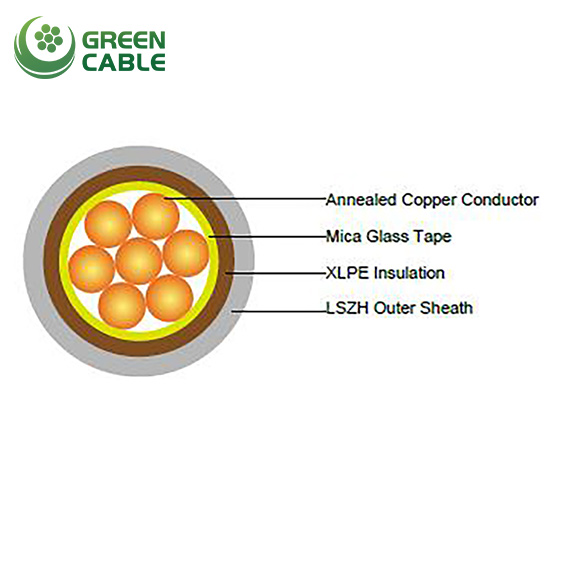

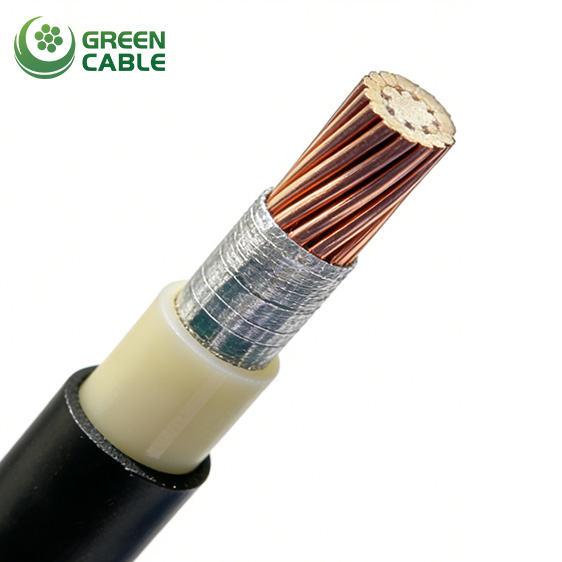

Conductor : Annealed copper conductor, stranded according to BS EN 60228 class 2.
Fire Barrier : Mica glass tape.
Insulation : XLPE type GP 8 according to BS 7655-1.3. HEPR type GP 6 according to BS 7655-1.2 or crosslinked polyolefin material type EI 5 according to BS EN 50363-5 can be offered as option.
Inner Covering Option : The optional inner covering, where used, shall consist of an extruded layer of synthetic polymeric material. It shall surround the single core and the laid-up two, three, four or five cores, giving the assembly a practically circular shape.
Outer Sheath : Extruded layer of polymeric material LTS 4 according to BS 7655-6.1.
Outer Sheath Option : UV resistance, hydrocarbon resistance, oil resistance, anti-rodent and anti-termite
properties can be offered as option.
BS 8573
| Conductor |
FFX300 1mRZ1-R |
|||||
|
No. of Cores × Cross-sectional Area |
Conductor Class |
Nominal Insulation Thickness |
Nominal Inner Covering Thickness |
Nominal Sheath Thickness |
Approx. Overall Diameter |
Approx. Weight |
|
No.×mm² |
|
mm |
mm |
mm |
mm |
kg/km |
|
1×1.5 |
2 |
0.7 |
0.4 |
1.4 |
6.8 |
58 |
|
1×2.5 |
2 |
0.7 |
0.4 |
1.4 |
7.2 |
71 |
|
1×4 |
2 |
0.7 |
0.4 |
1.4 |
7.8 |
92 |
|
1×6 |
2 |
0.7 |
0.4 |
1.4 |
8.3 |
118 |
|
1×10 |
2 |
0.7 |
0.4 |
1.4 |
9.3 |
168 |
|
1×16 |
2 |
0.7 |
0.4 |
1.4 |
10.3 |
238 |
|
1×25 |
2 |
0.9 |
0.4 |
1.4 |
12.0 |
352 |
|
1×35 |
2 |
0.9 |
0.4 |
1.4 |
13.2 |
463 |
|
1×50 |
2 |
1.0 |
0.6 |
1.4 |
14.7 |
606 |
|
1×70 |
2 |
1.1 |
0.6 |
1.4 |
16.7 |
843 |
|
1×95 |
2 |
1.1 |
0.6 |
1.5 |
18.8 |
1139 |
|
1×120 |
2 |
1.2 |
0.8 |
1.5 |
20.6 |
1416 |
|
1×150 |
2 |
1.4 |
0.8 |
1.6 |
22.8 |
1736 |
|
1×185 |
2 |
1.6 |
0.8 |
1.6 |
25.0 |
2154 |
|
1×240 |
2 |
1.7 |
1.0 |
1.7 |
28.1 |
2798 |
|
1×300 |
2 |
1.8 |
1.0 |
1.8 |
30.9 |
3479 |
|
1×400 |
2 |
2.0 |
1.2 |
1.9 |
34.5 |
4419 |
|
1×500 |
2 |
2.2 |
1.2 |
2.0 |
38.2 |
5535 |
|
1×630 |
2 |
2.4 |
1.4 |
2.2 |
43.0 |
7113 |
|
1×800 |
2 |
2.6 |
1.6 |
2.3 |
47.9 |
9026 |
|
1×1000 |
2 |
2.8 |
1.6 |
2.4 |
53.0 |
11302 |
| Conductor |
FFX400 1mRZ1-R |
|||||
|
No. of Cores × Cross-sectional Area |
Conductor Class |
Nominal Insulation Thickness |
Nominal Inner Covering Thickness |
Nominal Sheath Thickness |
Approx. Overall Diameter |
Approx. Weight |
|
no.×mm² |
|
mm |
mm |
mm |
mm |
kg/km |
|
2 cores |
||||||
|
2×1.5a |
2 |
0.7 |
0.4 |
1.8 |
11.6 |
139 |
|
2×2.5a |
2 |
0.7 |
0.4 |
1.8 |
12.4 |
167 |
|
2×4a |
2 |
0.7 |
0.4 |
1.8 |
13.5 |
211 |
|
2×6a |
2 |
0.7 |
0.4 |
1.8 |
14.6 |
265 |
|
2×10a |
2 |
0.7 |
0.6 |
1.8 |
16.5 |
370 |
|
2×16a |
2 |
0.7 |
0.6 |
1.8 |
18.6 |
515 |
|
2×25a |
2 |
0.9 |
0.8 |
1.8 |
22.0 |
756 |
|
2×35a |
2 |
0.9 |
0.8 |
1.8 |
24.3 |
983 |
|
2×50a |
2 |
1.0 |
1.0 |
1.8 |
27.4 |
1281 |
|
2×70a |
2 |
1.1 |
1.0 |
1.8 |
31.4 |
1771 |
|
2×95a |
2 |
1.1 |
1.2 |
1.9 |
35.4 |
2379 |
|
2×120a |
2 |
1.2 |
1.2 |
2.0 |
39.2 |
2971 |
|
2×25b |
2 |
0.9 |
0.6 |
1.8 |
18.1 |
695 |
|
2×35b |
2 |
0.9 |
0.6 |
1.8 |
19.9 |
917 |
|
2×50b |
2 |
1.0 |
0.8 |
1.8 |
22.6 |
1209 |
|
2×70b |
2 |
1.1 |
0.8 |
1.8 |
25.5 |
1684 |
|
2×95b |
2 |
1.1 |
1.0 |
1.9 |
28.2 |
2273 |
|
2×120b |
2 |
1.2 |
1.0 |
2.0 |
31.0 |
2844 |
|
3 cores |
||||||
|
3×1.5a |
2 |
0.7 |
0.4 |
1.8 |
12.2 |
152 |
|
3×2.5a |
2 |
0.7 |
0.4 |
1.8 |
13.1 |
192 |
|
3×4a |
2 |
0.7 |
0.4 |
1.8 |
14.3 |
253 |
|
3×6a |
2 |
0.7 |
0.4 |
1.8 |
15.5 |
329 |
|
3×10a |
2 |
0.7 |
0.6 |
1.8 |
17.5 |
479 |
|
3×16a |
2 |
0.7 |
0.6 |
1.8 |
19.8 |
687 |
|
3×25a |
2 |
0.9 |
0.8 |
1.8 |
23.5 |
1033 |
|
3×35a |
2 |
0.9 |
0.8 |
1.8 |
26.0 |
1364 |
|
3×50a |
2 |
1.0 |
1.0 |
1.8 |
29.3 |
1798 |
|
3×70a |
2 |
1.1 |
1.2 |
1.9 |
33.8 |
2532 |
|
3×95a |
2 |
1.1 |
1.2 |
2.0 |
38.3 |
3421 |
|
3×120a |
2 |
1.2 |
1.2 |
2.1 |
42.4 |
4284 |
|
3×25b |
2 |
0.9 |
0.6 |
1.8 |
20.7 |
1001 |
|
3×35b |
2 |
0.9 |
0.8 |
1.8 |
23.3 |
1334 |
|
3×50b |
2 |
1.0 |
0.8 |
1.8 |
25.9 |
1757 |
|
3×70b |
2 |
1.1 |
1.0 |
1.9 |
29.8 |
2479 |
|
3×95b |
2 |
1.1 |
1.2 |
2.0 |
33.2 |
3351 |
|
3×120b |
2 |
1.2 |
1.2 |
2.1 |
36.0 |
4191 |
|
4 cores |
||||||
|
4×1.5a |
2 |
0.7 |
0.4 |
1.8 |
13.2 |
183 |
|
4×2.5a |
2 |
0.7 |
0.4 |
1.8 |
14.2 |
234 |
|
4×4a |
2 |
0.7 |
0.4 |
1.8 |
15.5 |
313 |
|
4×6a |
2 |
0.7 |
0.6 |
1.8 |
16.9 |
412 |
|
4×10a |
2 |
0.7 |
0.6 |
1.8 |
19.2 |
608 |
|
4×16a |
2 |
0.7 |
0.6 |
1.8 |
21.7 |
881 |
|
4×25a |
2 |
0.9 |
0.8 |
1.8 |
25.8 |
1335 |
|
4×35a |
2 |
0.9 |
1.0 |
1.8 |
28.6 |
1773 |
|
4×50a |
2 |
1.0 |
1.0 |
1.8 |
32.3 |
2344 |
|
4×70a |
2 |
1.1 |
1.2 |
2.0 |
37.5 |
3329 |
|
4×95a |
2 |
1.1 |
1.2 |
2.1 |
42.3 |
4505 |
|
4×120a |
2 |
1.2 |
1.2 |
2.3 |
47.1 |
5667 |
|
4×25b |
2 |
0.9 |
0.8 |
1.8 |
23.3 |
1305 |
|
4×35b |
2 |
0.9 |
0.8 |
1.8 |
25.9 |
1740 |
|
4×50b |
2 |
1.0 |
1.0 |
1.8 |
29.4 |
2307 |
|
4×70b |
2 |
1.1 |
1.2 |
2.0 |
33.5 |
3271 |
|
4×95b |
2 |
1.1 |
1.2 |
2.1 |
36.9 |
4424 |
|
4×120b |
2 |
1.2 |
1.2 |
2.3 |
40.9 |
5565 |
|
5 cores |
||||||
|
5×1.5a |
2 |
0.7 |
0.4 |
1.8 |
13.5 |
218 |
|
5×2.5a |
2 |
0.7 |
0.4 |
1.8 |
14.5 |
281 |
|
5×4a |
2 |
0.7 |
0.6 |
1.8 |
16.9 |
378 |
|
5×10a |
2 |
0.7 |
0.6 |
1.8 |
20.2 |
700 |
|
5×16a |
2 |
0.7 |
0.8 |
1.8 |
24.3 |
1042 |
|
5×25a |
2 |
0.9 |
1.0 |
1.8 |
27.3 |
1594 |
|
5×35a |
2 |
0.9 |
1.0 |
1.8 |
30.9 |
2132 |
|
5×50a |
2 |
1.0 |
1.2 |
1.9 |
34.6 |
2855 |
|
5×70a |
2 |
1.1 |
1.2 |
2.1 |
38.4 |
4055 |
|
5×95a |
2 |
1.1 |
1.4 |
2.2 |
43.7 |
5503 |
|
5×120a |
2 |
1.2 |
1.4 |
2.4 |
46.9 |
6916 |
