Mainly used in power stations, mass transit underground passenger systems, airports, petrochemical plants,hotels, hospitals and high-rise buildings.
Conductor : Copper conductor according to BS EN 60228 class 1/2/5.
Fire Barrier : Mica glass tape.
Insulation : Thermoplastic compound of type TI 7 to EN 50363-7.
Insulation Option : UV resistance, hydrocarbon resistance, oil resistance, anti-rodent and anti-termite
properties can be offered as option.

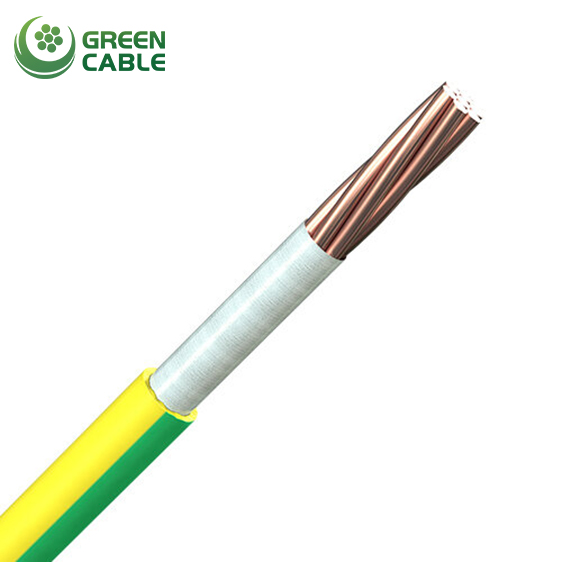

BS EN 50525-3-31
| Conductor |
FFX100 05mZ1-U/R/K |
||||
|
No. of Cores × Cross-sectional Area |
Conductor Class |
Nominal Insulation Thickness |
Min. Overall Diameter |
Max. Overall Diameter |
Approx. Weight |
|
No.×mm² |
|
mm |
mm |
mm |
kg/km |
|
1×0.5 |
1 |
0.6 |
2.9 |
3.3 |
13.5 |
|
1×0.75 |
1 |
0.6 |
3.1 |
3.5 |
16.5 |
|
1×1.0 |
1 |
0.6 |
3.2 |
3.7 |
19.7 |
|
1×0.5 |
2 |
0.6 |
3.0 |
3.4 |
14.4 |
|
1×0.75 |
2 |
0.6 |
3.2 |
3.6 |
17.3 |
|
1×1.0 |
2 |
0.6 |
3.3 |
3.8 |
21.3 |
|
1×0.5 |
5 |
0.6 |
3.1 |
3.5 |
14.2 |
|
1×0.75 |
5 |
0.6 |
3.2 |
3.7 |
17.7 |
|
1×1.0 |
5 |
0.6 |
3.4 |
3.8 |
20.7 |
| Conductor |
FFX100 1mZ1-R |
||||
|
No. of Cores × Cross-sectional Area |
Conductor Class |
Nominal Insulation Thickness |
Min. Overall Diameter |
Max. Overall Diameter |
Approx. Weight |
|
No.×mm² |
|
mm |
mm |
mm |
kg/km |
|
1×1.5 |
2 |
0.7 |
3.7 |
4.3 |
28 |
|
1×2.5 |
2 |
0.8 |
4.3 |
5.0 |
42 |
|
1×4 |
2 |
0.8 |
4.8 |
5.6 |
59 |
|
1×6 |
2 |
0.8 |
5.3 |
6.2 |
81 |
|
1×10 |
2 |
1.0 |
6.6 |
7.7 |
133 |
|
1×16 |
2 |
1.0 |
7.4 |
8.8 |
197 |
|
1×25 |
2 |
1.2 |
9.1 |
10.7 |
308 |
|
1×35 |
2 |
1.2 |
10.0 |
11.9 |
412 |
|
1×50 |
2 |
1.4 |
11.6 |
13.8 |
558 |
|
1×70 |
2 |
1.4 |
13.1 |
15.6 |
782 |
|
1×95 |
2 |
1.6 |
15.1 |
18.1 |
1078 |
|
1×120 |
2 |
1.6 |
16.6 |
19.8 |
1342 |
|
1×150 |
2 |
1.8 |
18.3 |
21.9 |
1650 |
|
1×185 |
2 |
2.0 |
20.3 |
24.3 |
2067 |
|
1×240 |
2 |
2.2 |
23 |
27.6 |
2703 |
|
1×300 |
2 |
2.4 |
25.5 |
30.6 |
3378 |
|
1×400 |
2 |
2.6 |
28.5 |
34.2 |
4267 |
|
1×500 |
2 |
2.8 |
31.5 |
37.9 |
5359 |
|
1×630 |
2 |
2.8 |
35 |
42.1 |
6884 |
