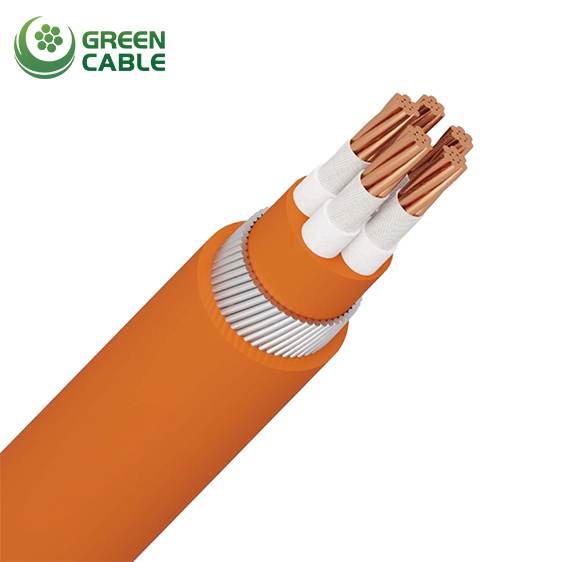

Fire Resistant Cables (IEC 60502-1 Armoured Power Cable)
Fire Resistant Cables (IEC 60502-1 Armoured Power Cable)

Fire Resistant Cables (IEC 60502-1 Armoured Power Cable)

Mainly used in power stations, mass transit underground passenger systems, airports, petrochemical plants,hotels, hospitals and high-rise buildings.

Send Massage Get Price

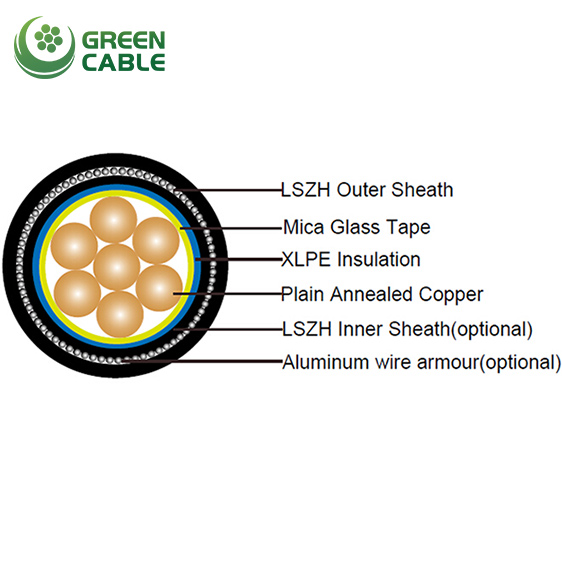

Construction

Conductor : The conductors shall be class 2 plain or metal-coated annealed copper in accordance with IEC 60228. Class 1 and class 5 conductor can be offered as option.

Fire Barrier : Mica glass tape.

Insulation : Thermosetting XLPE material and thickness shall be as per IEC 60502-1.

Inner Covering Option : Thermoplastic halogen free compound ST8 as per IEC 60502-1.

Armouring : Aluminium wire.

Outer Sheath : Thermoplastic halogen free compound ST8 as per IEC 60502-1.

Outer Sheath Option : UV resistance, hydrocarbon resistance, oil resistance, anti-rodent and anti-termite properties can be offered as option.

Standards

IEC 60502-1



600/1000V Mica+XLPE Insulated, LSZH Sheathed, Armoured Power Cables to IEC 60502-1 (Single Core)

Conductor

FFX300 1mRZ1MAZ1-R

No. of Cores × Cross-sectional Area

Conductor Class

Nominal Insulation Thickness

Nominal Inner Covering Thickness

Nominal AL Wire Diameter

Nominal Sheath Thickness

Approx. Overall Diameter

Approx. Weight

no.×mm²



mm

mm

mm

mm

mm

kg/km

1×4

2

0.7

1.0

0.8

1.8

12.2

205

1×6

2

0.7

1.0

0.8

1.8

12.7

238

1×10

2

0.7

1.0

0.8

1.8

13.7

300

1×16

2

0.7

1.0

0.8

1.8

14.7

383

1×25

2

0.9

1.0

0.8

1.8

16.4

520

1×35

2

0.9

1.0

1.25

1.8

18.5

695

1×50

2

1.0

1.0

1.25

1.8

20.0

864

1×70

2

1.1

1.0

1.25

1.8

22.0

1132

1×95

2

1.1

1.0

1.6

1.8

25.0

1530

1×120

2

1.2

1.0

1.6

1.8

26.8

1840

1×150

2

1.4

1.0

1.6

1.8

28.8

2186

1×185

2

1.6

1.0

1.6

1.8

31.4

2680

1×240

2

1.7

1.0

1.6

1.9

34.5

3380

1×300

2

1.8

1.0

2.0

2.0

38.5

4255

1×400

2

2.0

1.2

2.0

2.2

42.3

5298

1×500

2

2.2

1.2

2.0

2.3

46.4

6551

600/1000V Mica+XLPE Insulated, LSZH Sheathed, Armoured Power Cables to IEC 60502-1 (2-5 Cores)

Conductor

FFX400 1mRZ1MZ1-R

No. of Cores × Cross-sectional Area

Conductor Class

Nominal Insulation Thickness

Nominal Inner Covering Thickness

Nominal Armour Wire Diameter

Nominal Sheath Thickness

Approx. Overall Diameter

Approx. Weight

No.×mm²



mm

mm

mm

mm

mm

kg/km

2 cores

2×1.5

2

0.7

1.0

0.8

1.8

15.2

393

2×2.5

2

0.7

1.0

0.8

1.8

16

440

2×4

2

0.7

1.0

0.8

1.8

17.1

507

2×6

2

0.7

1.0

1.25

1.8

19.1

732

2×10

2

0.7

1.0

1.25

1.8

21.0

894

2×16

2

0.7

1.0

1.25

1.8

23.1

1103

2×25

2

0.9

1.0

1.6

1.8

27.2

1622

2×35

2

0.9

1.0

1.6

1.8

29.5

1936

2×50

2

1.0

1.0

1.6

1.9

32.8

2368

2×70

2

1.1

1.0

2.0

2.0

37.8

3311

2×95

2

1.1

1.2

2.0

2.1

42.2

4157

2×120

2

1.2

1.2

2.0

2.3

46.2

4950

2×150

2

1.4

1.2

2.5

2.4

51.3

6286

2×185

2

1.6

1.4

2.5

2.6

56.7

7551

2×240

2

1.7

1.4

2.5

2.7

62.5

9218

2×300

2

1.8

1.6

2.5

2.9

68.6

11064

2×400

2

2.0

1.6

2.5

3.1

75.7

13459

3 cores

3×1.5

2

0.7

1.0

0.8

1.8

15.8

436

3×2.5

2

0.7

1.0

0.8

1.8

16.7

495

3×4

2

0.7

1.0

0.8

1.8

17.9

581

3×6

2

0.7

1.0

1.25

1.8

20.0

838

3×10

2

0.7

1.0

1.25

1.8

22.0

1050

3×16

2

0.7

1.0

1.25

1.8

24.3

1328

3×25

2

0.9

1.0

1.6

1.8

28.7

1973

3×35

2

0.9

1.0

1.6

1.8

31.2

2398

3×50

2

1.0

1.0

1.6

1.9

34.7

2976

3×70

2

1.1

1.0

2.0

2.1

40.2

4200

3×95

2

1.1

1.2

2.0

2.2

44.9

5346

3×120

2

1.2

1.2

2.0

2.3

49.0

6402

3×150

2

1.4

1.4

2.5

2.5

55.0

8187

3×185

2

1.6

1.4

2.5

2.7

60.3

9822

3×240

2

1.7

1.4

2.5

2.8

66.5

12141

3×300

2

1.8

1.6

2.5

3.0

73.0

14682

3×400

2

2.0

1.6

3.15

3.3

82.2

19088

3 cores + 1 core earth conductor





3 cores

1 core











3×16/10

2

0.7

0.7

1.0

1.6

1.8

25.6

1442

3×25/16

2

0.9

0.7

1.0

1.6

1.8

29.5

2148

3×35/16

2

0.9

0.7

1.0

1.6

1.9

32.3

2573

3×50/25

2

1.0

0.9

1.0

1.6

2.1

36.1

3254

3×70/35

2

1.1

0.9

1.2

2

2.2

42.0

4578

3×95/50

2

1.1

1.0

1.2

2

2.3

46.6

5857

3×120/70

2

1.2

1.1

1.2

2

2.5

51.0

7135

3×150/70

2

1.4

1.1

1.4

2.5

2.7

57.2

8920

3×185/95

2

1.6

1.1

1.4

2.5

2.8

62.5

10826

3×240/120

2

1.7

1.2

1.6

2.5

3.1

69.9

13407

3×300/150

2

1.8

1.4

1.6

2.5

3.2

76..0

16243

3×400/185

2

2.0

1.6

1.6

3.15

3.6

85.7

21047

4 cores

4×1.5

2

0.7

1.0

0.8

1.8

16.8

491

4×2.5

2

0.7

1.0

0.8

1.8

17.8

565

4×4

2

0.7

1.0

0.8

1.8

19.1

702

4×6

2

0.7

1.0

1.25

1.8

21.4

968

4×10

2

0.7

1.0

1.25

1.8

23.7

1233

4×16

2

0.7

1.0

1.6

1.8

26.9

1755

4×25

2

0.9

1.0

1.6

1.8

31.0

2369

4×35

2

0.9

1.0

1.6

1.9

34.0

2928

4×50

2

1.0

1.0

2.0

2.1

38.9

3972

4×70

2

1.1

1.2

2.0

2.2

44.3

5233

4×95

2

1.1

1.2

2.0

2.3

49.1

6636

4×120

2

1.2

1.4

2.5

2.5

55.3

8608

4×150

2

1.4

1.4

2.5

2.7

60.4

10203

4×185

2

1.6

1.4

2.5

2.8

66.1

12264

4×240

2

1.7

1.6

2.5

3.1

73.9

15427

4×300

2

1.8

1.6

2.5

3.2

80.4

18565

4×400

2

2.0

1.8

3.15

3.6

91.1

24233

5 cores

5x1.5

2

0.7

1.0

0.8

1.8

17.9

578

5×2.5

2

0.7

1.0

0.8

1.8

19.0

668

5×4

2

0.7

1.0

0.8

1.8

20.5

799

5×6

2

0.7

1.0

1.25

1.8

22.9

1140

5×10

2

0.7

1.0

1.25

1.8

25.4

1465

5×16

2

0.7

1.0

1.6

1.8

29.0

2083

5×25

2

0.9

1.0

1.6

1.9

33.8

2853

5×35

2

0.9

1.0

1.6

2.0

37.1

3544
