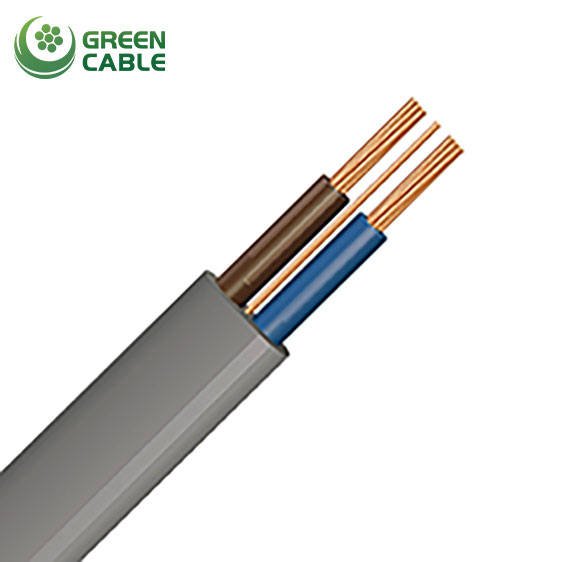

BS6004 624-Y twin and earth cables refer to the flat cores with the earth with a voltage of 300/500v. They could be single-core +earth 6241Y, twin cores +earth 6242Y cable, three cores +earth 6243Y, normally used fixed installation and industrial lighting.
These twin & earth cables follow Australian standard As/NZS 5000.2, referred to as TPS, have different cable structures and voltage (450/750v)
Conductor: Annealed Stranded class 1 or class 2
Rated voltage: 300/500V
Insulation: PVC
Sheath: PVC
BS 6004: 2012 Table 3
|
Nominal |
Phase Conductor |
Insulation |
Earth Conductor |
Outer Sheath |
Approx. |
|||||
|
No. of Wires/ |
|
Nominal Thickness |
Insulation |
No. |
Dia. |
|
Nominal Thickness |
Overall |
||
|
mm2 |
No./mm |
mm |
mm |
mm |
No. |
mm |
mm |
mm |
mm |
kg/km |
|
2x1.0+1.0 |
1/1.13 |
1.13 |
0.6 |
2.33 |
1 |
1.13 |
1.13 |
0.9 |
7.59x4.13 |
63.9 |
|
2x1.5+1.0 |
1/1.38 |
1.38 |
0.7 |
2.78 |
1 |
1.13 |
1.13 |
0.9 |
8.49x4.58 |
80.3 |
|
2x2.5+1.5 |
1/1.78 |
1.78 |
0.8 |
3.38 |
1 |
1.38 |
1.38 |
1.0 |
10.14x5.38 |
118.5 |
|
2x4+1.5 |
7/0.85 |
2.55 |
0.8 |
4.15 |
1 |
1.38 |
1.38 |
1.0 |
11.68x6.15 |
157.8 |
|
2x6+2.5 |
7/1.04 |
3.12 |
0.8 |
4.72 |
1 |
1.78 |
1.78 |
1.1 |
13.42x6.92 |
218.6 |
|
2x10+4 |
7/1.35 |
4.05 |
1.0 |
6.05 |
7 |
0.85 |
2.55 |
1.2 |
17.05x8.45 |
346.7 |
|
2x16+6 |
7/1.70 |
5.10 |
1.0 |
7.10 |
7 |
1.04 |
3.12 |
1.3 |
19.92x9.70 |
501.5 |
