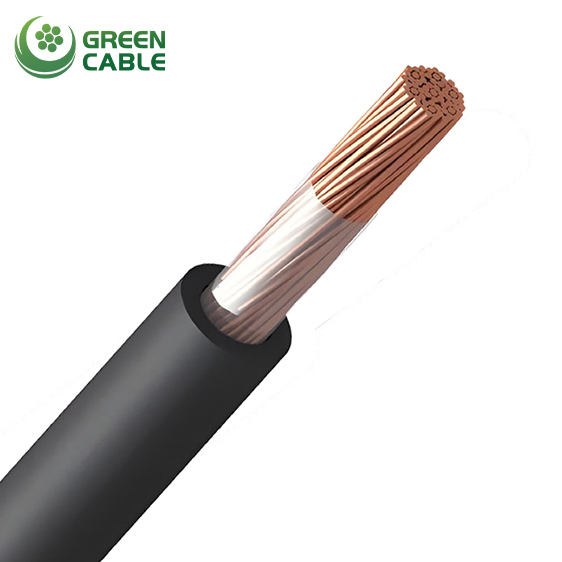

These cables are used as a connection to welding robots in the automotive industry, shipyards and for manually/automatically operated lines and spot welding. These cables are ideal for use as an interconnecting battery cable or in battery storage systems. The robust cable structure makes them resistant to low and high temperatures, ozone and radiation, oils, acids, fats and petrols.
For use on handheld electrode holder up to 100 V,Can be used in dry or damp rooms,For transmitting high currents from the electric welding device to the welding tool.
Voltage Rating : 100V
Temperature Rating: Fixed: -40°C to +85°C ; Flexed: -20°C to +85°C
Minimum Bending Radius: Flexed: 6 x overall diameter

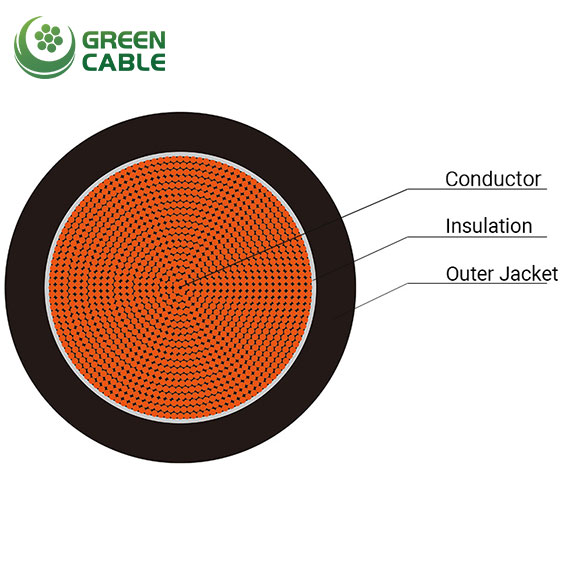

Conductor: Generally to Class 6 flexible copper conductor
Separator: PET (Polyester Tape)
Sheath: Rubber compound
Sheath Colour: Black Red
EN 50525-2-81, EN 60228, HD 22.6, VDE 0282-6,BS 638 Part 4,Flame Retardant according to IEC/EN 60332-1-2
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA | NOMINAL THICKNESS OF INSULATION | NOMINAL OVERALL DIAMETER | NOMINAL WEIGHT |
| mm2 | mm | mm | kg/km | |
| 1 | 10 | 2 | 9 | 146 |
| 1 | 16 | 2 | 10 | 204 |
| 1 | 25 | 2 | 11.5 | 290 |
| 1 | 35 | 2 | 12.5 | 384 |
| 1 | 50 | 2.2 | 14.5 | 535 |
| 1 | 70 | 2.4 | 16.5 | 716 |
| 1 | 95 | 2.6 | 18.5 | 943 |
| 1 | 120 | 2.8 | 20.5 | 1235 |
| 1 | 150 | 3 | 23 | 1556 |
