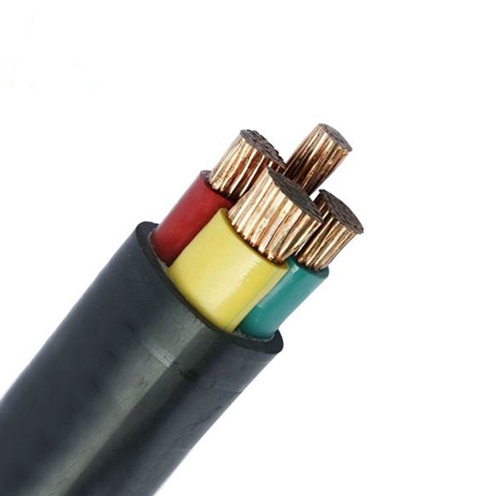

Low voltage PVC insulated or XLPE insulated Power cable
Application:
Power cable: Indoors, cable ducts, outdoors and buried in the ground, for power stations, industry and switchgear as well as for urban supply networks.
Construction：
1) Conductor : Copper or Aluminum Class 2 stranded conductors
2) Insulation: Polyvinyl chloride PVC or xlpe insulated
3) Armor: Steel wire or Steel-tape
4) Over sheath: Polyvinyl chloride PVC or PE
Standard:
IEC 60228 Conductors of insulate cables
IEC 60502-1 Power cables with extruded insulation and their accessories for rated voltages from 1 kV(Um=1.2kV) up to 30kV(Um=36kV) - Part 1:Cables for rated voltages of 1 kV(Um=1.2kV) and 3 kV(Um=3.6kV) .
LV Power Cables - Copper Conductor IEC 60502-1 | ||
PVC Insulated Cable | VV (NYY) | CU/PVC/PVC |
VY (NY2Y) | CU/PVC/PE | |
VV22 (NYBY) | CU/PVC/STA/PVC | |
VV23 (NYB2Y) | CU/PVC/STA/PE | |
VV32 (NYRY) | CU/PVC/SWA/PVC | |
VV33 (NYR2Y) | CU/PVC/SWA/PE | |
LV Power Cables - Aluminum Conductor IEC 60502-1 | ||
PVC Insulated Cable | VLV (NAYY) | AL/PVC/PVC |
VLY (NAY2Y) | AL/PVC/PE | |
VLV22 (NAYBY) | AL/PVC/STA/PVC | |
VLV22 (NAYB2Y) | AL/PVC/STA/PE | |
VLV32 (NAYRY) | AL/PVC/SWA/PVC | |
VLV33 (NAYR2Y) | AL/PVC/SWA/PE | |
LV Power Cables - Copper Conductor IEC 60502-1 | ||
XLPE Insulated Cable | YJV (N2XY) | CU/XLPE/PVC |
YJY (N2X2Y) | CU/XLPE/PE | |
YJV22 (N2XBY) | CU/XLPE/STA/PVC | |
YJV23 (N2XB2Y) | CU/XLPE/STA/PE | |
YJV32 (N2XRY) | CU/XLPE/SWA/PVC | |
YJV33 (N2XR2Y) | CU/XLPE/SWA/PE | |
LV Power Cables - Aluminum Conductor IEC 60502-1 | ||
XLPE Insulated Cable | YJLV (NA2XY) | AL/XLPE/PVC |
YJLY (NA2X2Y) | AL/XLPE/PE | |
YJLV22 (NA2XBY) | AL/XLPE/STA/PVC | |
YJLV23 (NA2XB2Y) | AL/XLPE/STA/PE | |
YJLV32 (NA2XRY) | AL/XLPE/SWA/PVC | |
YJLV33 (NA2XR2Y) | AL/XLPE/SWA/PE | |
