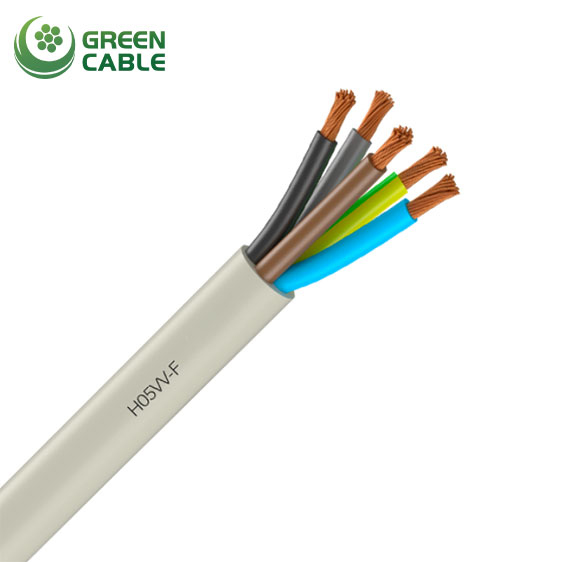

H05VVF Wire

Nominal Cross
Section Area

No. of Wires
/Dia. of Wires

Approx. Dia. of Conductor

Thickness
of
Insulation

Thickness
of
Sheath

Approx. Overall
 Dia.

Approx.
Weight
of Cable

Max. Conductor
Resistance
 at 20°C

Min.
Insulation
Resistance
at 70°C

mm2

No./mm

mm

mm

mm

mm

kg/km

Ω/km

MΩ.km

2x0.75

24/0.2

1.12

0.6

0.8

6.24

54

26.0

0.011

2x1.0

34/0.2

1.29

0.6

0.8

6.58

62

19.5

0.010

2x1.5

30/0.25

1.57

0.7

0.8

7.54

84

13.3

0.010

2x2.5

49/0.25

2.02

0.8

1.0

9.24

130

7.98

0.0095

2x4.0

56/0.3

2.9

0.8

1.1

11.20

193

4.95

0.0078

3x0.75

24/0.2

1.12

0.6

0.8

6.60

65

26.0

0.0110

3x1.0

34/0.2

1.29

0.6

0.8

6.96

76

19.5

0.0100

3x1.5

30/0.25

1.57

0.7

0.9

8.20

106

13.3

0.0100

3x2.5

49/0.25

2.02

0.8

1.1

10.00

163

7.98

0.0095

3x4.0

56/0.3

2.9

0.8

1.2

12.10

242

4.95

0.0078

4x0.75

24/0.2

1.12

0.6

0.8

7.20

78

26.0

0.0110

4x1.0

34/0.2

1.29

0.6

0.9

7.81

95

19.5

0.0100

4x1.5

30/0.25

1.57

0.7

1.0

9.17

134

13.3

0.0100

4x2.5

49/0.25

2.02

0.8

1.1

10.94

199

7.98

0.0095

4x4.0

56/0.3

2.9

0.8

1.2

13.26

297

4.95

0.0078

5x0.75

24/0.2

1.12

0.6

0.9

8.06

96

26.0

0.0110

5x1.0

34/0.2

1.29

0.6

0.9

8.52

113

19.5

0.0100

5x1.5

30/0.25

1.57

0.7

1.1

10.22

163

13.3

0.0100

5x2.5

49/0.25

2.02

0.8

1.2

12.17

242

7.98

0.0095

5x4.0

56/0.3

2.9

0.8

1.4

14.95

367

4.95

0.0078
