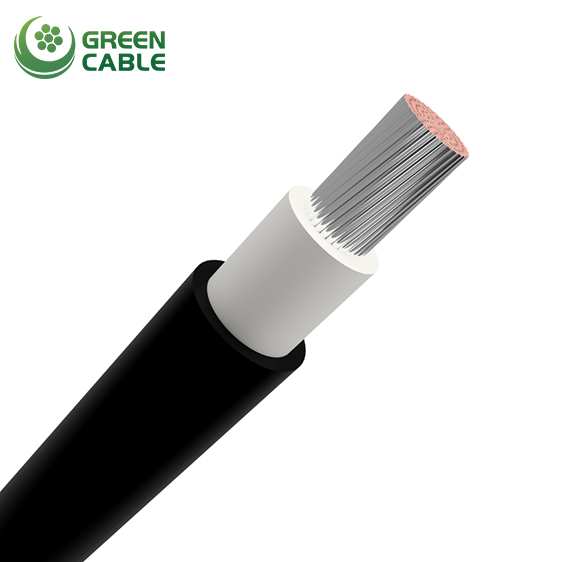

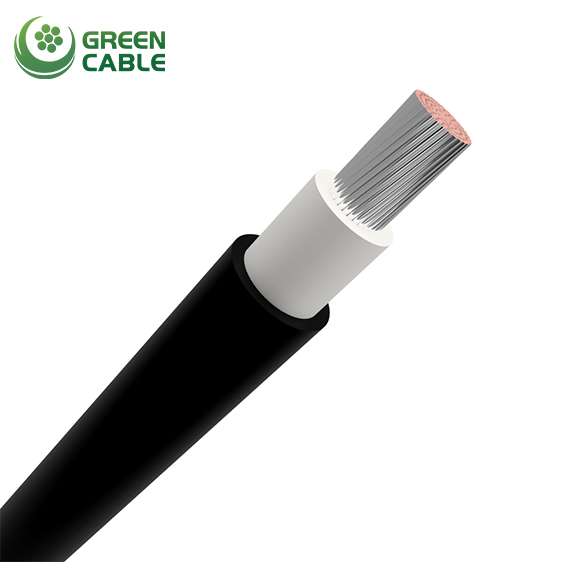

H1Z2Z2-K solar cable is highly flexible cable specially designed for connecting photovoltaic panels, compatible with all major connectors, certified by various international certifications such as TUV/UL/IEC/CE/RETIE, compliant with UL4703, IEC62930 and EN50618 standards, It is suitable for different photovoltaic power generation fields such as solar plants, rooftop solar installations and floating power stations. This versatile single core cable is designed to meet the different needs of the solar industry. It is suitable for various harsh outdoor environments such as rooftop, deserts, lakes, seasides, and mountains (climate environment with high temperature, high humidity, and strong salt content). It is an important part of the solar system. Good connection quality ensures the long-term and safe operation of the photovoltaic system and effectively reduces the failure rate of the photovoltaic system and the later operating costs.
Conductor:Tinned Copper Conductor.
Insulation:Halogen-free cross-linked compound.
Sheath:Halogen-free cross-linked.
EN 50618, TÜV 2 PfG 1169/08.2007, EN 50288-3-7, EN 60068-2-78,Halogen-free cross-linked, flame retardant compound.
|
NO. OF CORES |
NOMINAL CROSS SECTIONAL AREA mm² |
NOMINAL OVERALL DIAMETER mm |
NOMINAL WEIGHT kg/km |
TENSILE STRENGTH IN OPERATION N |
|
1 |
1.5 |
4.6 |
36 |
22 |
|
1 |
2.5 |
5.0 |
46 |
37 |
|
1 |
4 |
5.6 |
62 |
60 |
|
1 |
6 |
6.1 |
82 |
90 |
|
1 |
10 |
7.1 |
125 |
150 |
|
1 |
16 |
8.5 |
190 |
240 |
|
1 |
25 |
10.4 |
285 |
375 |
|
1 |
35 |
11.5 |
385 |
525 |
|
1 |
50 |
13.7 |
540 |
750 |
|
1 |
70 |
15.8 |
740 |
1050 |
|
1 |
95 |
17.3 |
965 |
1350 |
|
1 |
120 |
19.1 |
1210 |
1800 |
|
1 |
150 |
21.4 |
1495 |
2250 |
|
1 |
185 |
24.9 |
1885 |
2775 |
|
1 |
240 |
27.3 |
2395 |
3600 |
