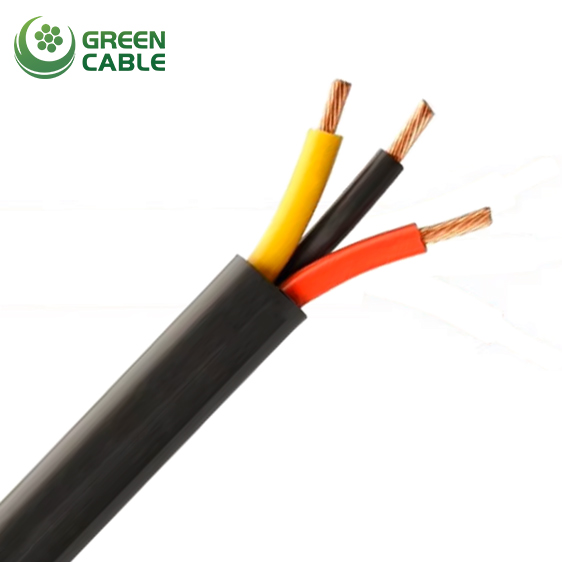

JHS waterproof rubber cables are used for submersible motors with AC voltage below 500V for transmitting electrical energy.It has good electrical insulation performance under long-term water immersion and large water pressure. The waterproof rubber sheathed cable has good bending performance and can withstand frequent movements.
VDE 0482-332-1-2/IEC 60332-1
|
AWG |
Conductor OD |
Insulation Thickness |
Sheath Thickness |
Cable OD |
Weight |
|
Nominal Cross section mm^2 |
mm |
mm |
mm |
mm |
kg/km |
|
1x1 |
1.2 |
0.8 |
1.3 |
5.2-6. 5 |
50 |
|
1x1.5 |
1.5 |
0.8 |
1.4 |
5. 7-7. 1 |
65 |
|
1x2.5 |
2.0 |
0.9 |
1.4 |
6. 3-7. 9 |
83 |
|
1x4 |
2.5 |
1.0 |
1.5 |
7.2-9.0 |
112 |
|
1x6 |
3.2 |
1.0 |
1.6 |
7.9-9. 8 |
145 |
|
1x10 |
4.3 |
1.2 |
1.8 |
9.5-11.9 |
223 |
|
1x16 |
5.3 |
1.2 |
1.9 |
10.8-13.4 |
304 |
|
1x25 |
7.0 |
1.4 |
2.0 |
12.7-15.8 |
446 |
|
1x35 |
8.0 |
1.4 |
2.2 |
14.3-17.9 |
564 |
|
1x50 |
9.6 |
1.6 |
2.4 |
16. 5-20. 6 |
773 |
|
1x70 |
11.5 |
1.6 |
2.6 |
18.6-23.3 |
1032 |
|
1x95 |
13.3 |
1.8 |
2.8 |
20.8-26. 0 |
1358 |
|
1x120 |
15.0 |
1.8 |
3.0 |
22.8-28.6 |
1623 |
|
1x150 |
16.8 |
2.0 |
3.2 |
25.2-31.4 |
2013 |
|
1x185 |
19.0 |
2.2 |
3.4 |
27.6-34.4 |
2481 |
|
1x240 |
22.0 |
2.4 |
3.5 |
30.6-38. 3 |
3166 |
|
1x300 |
24.0 |
2.6 |
3.6 |
33.5-41.9 |
3783 |
|
1x400 |
28.0 |
2.8 |
3.8 |
37.4-46.8 |
4939 |
|
2x1 |
1.2 |
0.8 |
1.3 |
7.7-10.0 |
96 |
|
2x1.5 |
1.5 |
0.8 |
1.5 |
8.5-11.0 |
125 |
|
2x2.5 |
2.0 |
0.9 |
1.7 |
10.2-13. 1 |
174 |
|
2x4 |
2.5 |
1.0 |
1.8 |
11.8-15. 1 |
234 |
|
2x6 |
3.2 |
1.0 |
2.0 |
13. 1-16.8 |
309 |
|
2x10 |
4.3 |
1.2 |
3.1 |
17.7-22.6 |
571 |
|
2x16 |
5.3 |
1.2 |
3.3 |
20.2-25. 7 |
749 |
|
2x25 |
7.0 |
1.4 |
3.6 |
24. 3-30. 7 |
1097 |
|
2x35 |
8.0 |
1.4 |
3.9 |
27.3-34.6 |
1383 |
|
2x50 |
9.6 |
1.6 |
4.3 |
31.8-40. 1 |
1880 |
|
2x70 |
11.5 |
1.6 |
4.6 |
35.8-45. 1 |
2525 |
|
2x95 |
13.3 |
1.8 |
5.0 |
40.2-51.0 |
3292 |
|
AWG |
Conductor OD |
Insulation Thickness |
Sheath Thickness |
Cable OD |
Weight |
|
Nominal Cross section mm^2 |
mm |
mm |
mm |
mm |
kg/km |
|
3x1 |
1.2 |
0.8 |
1.4 |
8. 3—10. 7 |
122 |
|
3x1.5 |
1.5 |
0.8 |
1.6 |
9.2-11.9 |
160 |
|
3x2.5 |
2.0 |
0.9 |
1.8 |
10.9-14.0 |
225 |
|
3x4 |
2.5 |
1.0 |
1.9 |
12. 7-16.2 |
306 |
|
3x6 |
3.2 |
1.0 |
2.1 |
14. 1-18.0 |
408 |
|
3x10 |
4.3 |
1.2 |
3.3 |
19. 1-24.2 |
758 |
|
3x16 |
5.3 |
1.2 |
3.5 |
21.8-27.6 |
1014 |
|
3x25 |
7.0 |
1.4 |
3.8 |
26. 1-33.0 |
1473 |
|
3x35 |
8.0 |
1.4 |
4.1 |
29. 3-37. 1 |
1870 |
|
3x50 |
9.6 |
1.6 |
4.5 |
34. 1-42.9 |
2509 |
|
3x70 |
11.5 |
1.6 |
4.8 |
38. 4-48. 3 |
3362 |
|
3x95 |
13.3 |
1.8 |
5.3 |
43. 3-54.0 |
4476 |
|
3x120 |
15.0 |
1.8 |
5.6 |
47. 3-60. 0 |
5355 |
|
3x150 |
16.8 |
2.0 |
6.0 |
52. 0-66. 0 |
6626 |
|
4x1 |
1.2 |
0.8 |
1.5 |
9. 2-11.9 |
146 |
|
4x1.5 |
1.5 |
0.8 |
1.7 |
10.2-13. 1 |
193 |
|
4x2.5 |
2.0 |
0.9 |
1.9 |
12. 1-15.5 |
279 |
|
4x4 |
2.5 |
1.0 |
2.0 |
14.0-17.9 |
383 |
|
4x6 |
3.2 |
1.0 |
2.3 |
15. 7-20.0 |
522 |
|
4x10 |
4.3 |
1.2 |
3.4 |
20. 9-26. 5 |
936 |
|
4x16 |
5.3 |
1.2 |
3.6 |
23. 8-30. 1 |
1266 |
|
4x25 |
7.0 |
1.4 |
4.1 |
28.9-36.6 |
1896 |
|
4x35 |
8.0 |
1.4 |
4.4 |
32. 5-41. 1 |
2410 |
|
4x50 |
9.6 |
1.6 |
4.8 |
37. 7-47. 5 |
3214 |
|
4x70 |
11.5 |
1.6 |
5.2 |
42. 7-54.0 |
4396 |
|
4x95 |
13.3 |
1.8 |
5.9 |
48.4-61.0 |
5800 |
|
4x120 |
15.0 |
1.8 |
6.0 |
53. 0-66. 0 |
6895 |
|
4x150 |
16.8 |
2.0 |
6.5 |
58. 0-73.0 |
8570 |
