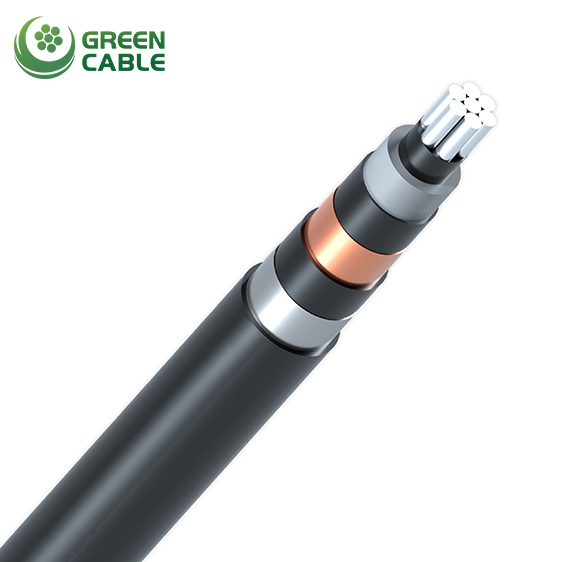

Medium Voltage AL/XLPE/STA/PVC Power Cables

Medium Voltage AL/XLPE/STA/PVC Power Cables

Medium voltage power cables are for the distribution power systems, with the voltages falling usually within the range of 1 kV to 36 kV. They are employed in large commercial buildings and industrial plants, and for the linking of substations with the local distribution networks.Medium voltage power cable for static application in ground, within and outside facilities, outdoor, in cable canals, in water, in conditions where cables are not exposed to heavier mechanical stress and tensile strain. Due to its very low factor of dielectric loss, which remains constant over its entire operating lifetime, and owing to excellent insulation property of XLPE material, firmly longitudinally spliced with conductor screen and insulation screen of semi-conductive material (extruded in one process), the cable has a high operating reliability. Used in transformer stations, electric power plants and industrial plants. We can proudce many types of medium voltage cables.

Send Massage Get Price

Construction

Voltage: 3.6/6KV, 6/10KV, 8.7/15KV, 12/20KV, 18/30KV, 21/35KV, 26/35KV

Conductor : Copper or Aluminum,Class 1 or Class 2,solid or stranded Circular conductors

Conductor screen: semi-conducting compound

Insulation: Cross-linked polyethylene XLPE

Insulation screen: semi-conducting compound

Metallic screen: Copper tape or/and Copper wire

Armored:Steel Tape Armor

Over sheath: Polyvinyl chloride PVC or PE

Standards

IEC 60228, IEC 60502-2

MV Power Cables - Copper Conductor  IEC 60502-2

XLPE Insulated Cable

Single-core

Three-core



YJV (N2XSY)

YJV (N2XSEY)

CU/XLPE/CTS/PVC

YJY (N2XS2Y)

YJY (N2XSE2Y)

CU/XLPE/CTS/PE

YJSV (N2XSY)

YJSV (N2XSEY)

CU/XLPE/CWS&CTS/PVC

YJSY (N2XS2Y)

YJSY (N2XSE2Y)

CU/XLPE/CWS&CTS/PE

YJV62 (N2XSBY)

YJV22 (N2XSEBY)

CU/XLPE/CTS/STA/PVC

YJV63 (N2XSB2Y)

YJV23 (N2XSEB2Y)

CU/XLPE/CTS/STA/PE

YJV72 (N2XSRY)

YJV32 (N2XSERY)

CU/XLPE/CTS/SWA/PVC

YJV73 (N2XSR2Y)

YJV33 (N2XSER2Y)

CU/XLPE/CTS/SWA/PE

MV Power Cables - Aluminum Conductor  IEC 60502-2

XLPE Insulated Cable

Single-core

Three-core



YJLV (NA2XSY)

YJLV (NA2XSEY)

AL/XLPE/CTS/PVC

YJLY (NA2XS2Y)

YJLY (NA2XSE2Y)

AL/XLPE/CTS/PE

YJLSV (NA2XSY)

YJLSV (NA2XSEY)

AL/XLPE/CWS&CTS/PVC

YJLSY (NA2XS2Y)

YJLSY (NA2XSE2Y)

AL/XLPE/CWS&CTS/PE

YJLV62 (NA2XSBY)

YJLV22 (NA2XSEBY)

AL/XLPE/CTS/STA/PVC

YJLV63 (NA2XSB2Y)

YJLV23 (NA2XSEB2Y)

AL/XLPE/CTS/STA/PE

YJLV72 (NA2XSRY)

YJLV32 (NA2XSERY)

AL/XLPE/CTS/SWA/PVC

YJLV73 (NA2XSR2Y)

YJLV33 (NA2XSER2Y)

AL/XLPE/CTS/SWA/PE

3.6/6(7.2) KV XLPE/PVC 3 cores (steel tape armored) YJV22, YJLV22

Conductor

Insulation thickness (mm)

Copper tape screen (approximate) (mm)

PVC bedding thickness (mm)

Armored tape outer diameter (mm)

Sheath thickness (mm)

Outer diameter (approximate) (mm)

Copper core cable weight (kg/km)

Aluminum core cable weight (kg/km)

Cross sectional area (mm2)

Structure

Outer diameter (mm)

25

Compact round

6.0

2.5

0.1

1.2

0.5

2.2

39.3

2474

2002

35

Compact round

7.2

2.5

0.1

1.3

0.5

2.3

42.3

2947

2286

50

Compact round

8.4

2.5

0.1

1.3

0.5

2.4

45.1

3537

2593

70

Compact round

10.0

2.5

0.1

1.4

0.5

2.5

48.9

4351

3030

95

Compact round

11.7

2.5

0.1

1.4

0.5

2.6

52.8

5297

3504

120

Compact round

13.1

2.5

0.1

1.5

0.5

2.8

56.4

6277

4012

150

Compact round

14.6

2.5

0.1

1.6

0.5

2.9

60.0

7373

4541

185

Compact round

16.3

2.5

0.1

1.6

0.5

3.0

63.9

8665

5172

240

Compact round

18.5

2.6

0.1

1.7

0.5

3.2

69.7

10618

6087

300

Compact round

20.7

2.8

0.1

1.8

0.5

3.4

76.3

12836

7173

400

Compact round

23.8

3.0

0.1

2.0

0.8

3.7

86.1

17195

9644

500

Compact round

26.6

3.2

0.1

2.1

0.8

3.9

94.8

20887

11448

6(7.2)/10(12) KV XLPE/PVC 3 cores (steel tape armored) YJV22, YJLV22

Conductor

Insulation thickness (mm)

Copper tape screen (approximate) (mm)

PVC bedding thickness (mm)

Armored tape outer diameter (mm)

Sheath thickness (mm)

Outer diameter (approximate) (mm)

Copper core cable weight (kg/km)

Aluminum core cable weight (kg/km)

Cross sectional area (mm2)

Structure

Outer diameter (mm)

25

Compact round

6.0

3.4

0.1

1.3

0.5

2.4

43.8

2805

2333

35

Compact round

7.2

3.4

0.1

1.3

0.5

2.4

46.4

3251

2590

50

Compact round

8.4

3.4

0.1

1.4

0.5

2.6

49.6

3902

2958

70

Compact round

10.0

3.4

0.1

1.5

0.5

2.7

53.4

4739

3417

95

Compact round

11.7

3.4

0.1

1.5

0.5

2.8

57.3

5706

3913

120

Compact round

13.1

3.4

0.1

1.6

0.5

2.9

60.7

6681

4415

150

Compact round

14.6

3.4

0.1

1.6

0.5

3.0

64.1

7764

4932

185

Compact round

16.3

3.4

0.1

1.7

0.5

3.1

68.2

9108

5615

240

Compact round

18.5

3.4

0.1

1.8

0.5

3.3

73.5

11046

6515

300

Compact round

20.7

3.4

0.1

1.9

0.5

3.5

79.3

13198

7534

400

Compact round

23.8

3.4

0.1

2.0

0.8

3.7

87.8

17420

9869

500

Compact round

26.6

3.4

0.1

2.1

0.8

3.9

94.8

20958

11520

8.7(10,12)/15(17.5) KV XLPE/PVC 3 cores (steel tape armored) YJV22, YJLV22

Conductor

Insulation thickness (mm)

Copper tape screen (approximate) (mm)

PVC bedding thickness (mm)

Armored tape outer diameter (mm)

Sheath thickness (mm)

Outer diameter (approximate) (mm)

Copper core cable weight (kg/km)

Aluminum core cable weight (kg/km)

Cross sectional area (mm2)

Structure

Outer diameter (mm)

25

Compact round

6.0

4.5

0.1

1.4

0.5

2.5

48.9

3227

2755

35

Compact round

7.2

4.5

0.1

1.4

0.5

2.6

51.7

3711

3050

50

Compact round

8.4

4.5

0.1

1.5

0.5

2.7

54.7

4372

3428

70

Compact round

10.0

4.5

0.1

1.5

0.5

2.8

58.4

5208

3886

95

Compact round

11.7

4.5

0.1

1.6

0.5

3.0

62.6

6271

4477

120

Compact round

13.1

4.5

0.1

1.7

0.5

3.1

66.0

7254

4989

150

Compact round

14.6

4.5

0.1

1.7

0.5

3.2

69.5

8420

5588

185

Compact round

16.3

4.5

0.1

1.8

0.5

3.3

73.5

9731

6239

240

Compact round

18.5

4.5

0.1

1.9

0.5

3.5

78.9

11715

7184

300

Compact round

20.7

4.5

0.1

2.0

0.8

3.7

85.8

14774

9111

400

Compact round

23.8

4.5

0.1

2.1

0.8

3.9

93.1

18350

10798

500

Compact round

26.6

4.5

0.1

2.2

0.8

4.1

101.0

21990

12551

12/20 (24) XLPE/PVC 3 cores (steel tape armored) YJV22, YJLV22

Conductor

Insulation thickness (mm)

Copper tape screen (approximate) (mm)

PVC bedding thickness (mm)

Armored tape outer diameter (mm)

Sheath thickness (mm)

Outer diameter (approximate) (mm)

Copper core cable weight (kg/km)

Aluminum core cable weight (kg/km)

Cross sectional area (mm2)

Structure

Outer diameter (mm)

35

Compact round

7.2

5.5

0.1

1.5

0.5

2.8

56.6

4182

3521

50

Compact round

8.4

5.5

0.1

1.6

0.5

2.9

59.6

4866

3922

70

Compact round

10.0

5.5

0.1

1.6

0.5

3.0

63.3

5738

4417

95

Compact round

11.7

5.5

0.1

1.7

0.5

3.1

67.3

6783

4990

120

Compact round

13.1

5.5

0.1

1.8

0.5

3.2

70.7

7847

5582

150

Compact round

14.6

5.5

0.1

1.8

0.5

3.3

74.2

8972

6141

185

Compact round

16.3

5.5

0.1

1.9

0.5

3.5

78.4

10352

6859

240

Compact round

18.5

5.5

0.1

2.0

0.8

3.7

85.0

13229

8698

300

Compact round

20.7

5.5

0.1

2.1

0.8

3.8

90.5

15523

9860

400

Compact round

23.8

5.5

0.1

2.2

0.8

4.1

98.0

19110

11559

500

Compact round

26.6

5.5

0.1

2.3

0.8

4.3

105.9

22909

13470

18/30 (36) XLPE/PVC 3 cores (steel tape armored) YJV22, YJLV22

Conductor

Insulation thickness (mm)

Copper tape screen (approximate) (mm)

PVC bedding thickness (mm)

Armored tape outer diameter (mm)

Sheath thickness (mm)

Outer diameter (approximate) (mm)

Copper core cable weight (kg/km)

Aluminum core cable weight (kg/km)

Cross sectional area (mm2)

Structure

Outer diameter (mm)

50

Compact round

8.4

8.0

0.1

1.8

0.5

3.3

71.6

6279

5335

70

Compact round

10.0

8.0

0.1

1.8

0.5

3.4

75.2

7189

5868

95

Compact round

11.7

8.0

0.1

1.9

0.5

3.5

79.3

8305

6511

120

Compact round

13.1

8.0

0.1

2.0

0.8

3.7

84.1

10257

7992

150

Compact round

14.6

8.0

0.1

2.0

0.8

3.8

87.5

11435

8603

185

Compact round

16.3

8.0

0.1

2.1

0.8

3.9

91.6

12933

9441

240

Compact round

18.5

8.0

0.1

2.2

0.8

4.1

96.9

15043

10512

300

Compact round

20.7

8.0

0.1

2.3

0.8

4.2

102.5

17412

11749

400

Compact round

23.8

8.0

0.1

2.4

0.8

4.5

110.0

21229

13678

500

Compact round

26.6

8.0

0.1

2.5

0.8

4.7

117.9

25145

15706

21/35 (40.5) XLPE/PVC 3 cores (steel tape armored) YJV22, YJLV22

Conductor

Insulation thickness (mm)

Copper tape screen (approximate) (mm)

PVC bedding thickness (mm)

Armored tape outer diameter (mm)

Sheath thickness (mm)

Outer diameter (approximate) (mm)

Copper core cable weight (kg/km)

Aluminum core cable weight (kg/km)

Cross sectional area (mm2)

Structure

Outer diameter (mm)

50

Compact round

8.4

9.3

0.1

1.9

0.5

3.5

78.2

7076

6132

70

Compact round

10.0

9.3

0.1

2.0

0.8

3.6

83.3

8864

7543

95

Compact round

11.7

9.3

0.1

2.0

0.8

3.8

87.3

10094

8301

120

Compact round

13.1

9.3

0.1

2.1

0.8

3.9

90.7

11190

8925

150

Compact round

14.6

9.3

0.1

2.2

0.8

4.0

94.4

12527

9695

185

Compact round

16.3

9.3

0.1

2.2

0.8

4.1

98.2

14003

10511

240

Compact round

18.5

9.3

0.1

2.3

0.8

4.3

103.6

16160

11629

300

Compact round

20.7

9.3

0.1

2.4

0.8

4.4

109.1

18691

13028

400

Compact round

23.8

9.3

0.1

2.5

0.8

4.7

116.6

22446

14895

26/35 (40.5) XLPE/PVC 3 cores (steel tape armored) YJV22, YJLV22

Conductor

Insulation thickness (mm)

Copper tape screen (approximate) (mm)

PVC bedding thickness (mm)

Armored tape outer diameter (mm)

Sheath thickness (mm)

Outer diameter (approximate) (mm)

Copper core cable weight (kg/km)

Aluminum core cable weight (kg/km)

Cross sectional area (mm2)

Structure

Outer diameter (mm)

50

Compact round

8.4

10.5

0.1

1.9

0.8

3.7

85.6

8793

7849

70

Compact round

10.0

10.5

0.1

2.0

0.8

3.8

89.5

9817

8495

95

Compact round

11.7

10.5

0.1

2.0

0.8

3.9

93.3

11036

9243

120

Compact round

13.1

10.5

0.1

2.1

0.8

4.1

96.9

12241

9976

150

Compact round

14.6

10.5

0.1

2.2

0.8

4.2

100.6

13558

10726

185

Compact round

16.3

10.5

0.1

2.2

0.8

4.3

104.4

15085

11592

240

Compact round

18.5

10.5

0.1

2.3

0.8

4.5

109.8

17381

12850

300

Compact round

20.7

10.5

0.1

2.4

0.8

4.6

115.3

19830

14167

400

Compact round

23.8

10.5

0.1

2.5

0.8

4.9

122.8

23689

16138

500

Compact round

26.6

10.5

0.1

2.9

0.8

5.2

131.6

26584

17145

Related Products

0.6/1kV XLPE Insulated Power Cables

0.6/1kV XLPE Insulated Power Cables

Cables may be used in power stations, industry and switchgear as well as for urban supply networks, where with low risk of mechanical damage. Suitable for Installation indoors, cable trunking, outdoors and buried in the ground and in duct.

Learn More

Medium Voltage XLPE Insulated Power Cables

Medium Voltage XLPE Insulated Power Cables

Medium voltage power cables are for the distribution power systems, with the voltages falling usually within the range of 1 kV to 36 kV. They are employed in large commercial buildings and industrial plants, and for the linking of substations with the local distribution networks.Medium voltage power cable for static application in ground, within and […]

Learn More

Medium voltage AL/XLPE/SWA/PVC Power Cables

Medium voltage AL/XLPE/SWA/PVC Power Cables

Medium voltage power cables are for the distribution power systems, with the voltages falling usually within the range of 1 kV to 36 kV. They are employed in large commercial buildings and industrial plants, and for the linking of substations with the local distribution networks.Medium voltage power cable for static application in ground, within and […]

Learn More

0.6/1kV PVC Insulated Power Cables

0.6/1kV PVC Insulated Power Cables

Cables may be used in power stations, industry and switchgear as well as for urban supply networks, where with low risk of mechanical damage. Suitable for Installation indoors, cable trunking, outdoors and buried in the ground and in duct.

Learn More

Inquiry

Please Feel free to give your inquiry in the form below.we will reply you in 24 hours.

    • *

    • *

    • *

    Whatsapp

    Whatsapp:008615236188462

    Email

    Email:admin@greencables.com.cn

    WeChat

    WeChat:+8615236188462

    Home Tel Mail Inquiry
