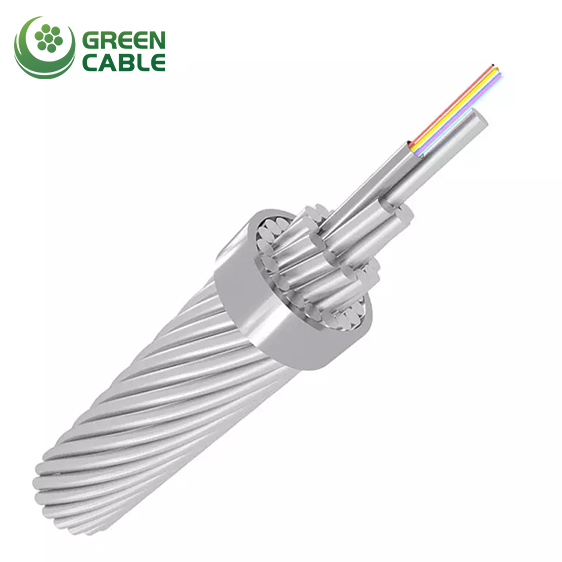

OPPC Optical Phase Conductor

The Aluminum tube is surrounded by single or double layers of aluminum clad steel wires(ACS) or mix ACS wires and aluminum alloy wires Aluminum wires / Aluminum alloy wires Optical fibers. Aluminum. OPPC cables have the dual functions performance functions of phase conductors with communication capabilities.

Send E-mail Get Price

Construction

The conductor is consist of 1350-H19 aluminum wires, 6201-T81 aluminum alloy wires and aluminum-clad steel wires concentrically stranded around a central stainless steel tube with optical fibers inside.

Standards

ITU-TG.652, ITU-TG.655, EIA/TIA598.B, IEC 60794-4-10, IEC 60794-1-2, IEEE1138-2009, IEC 61232, IEC 60104, IEC 6108

Specification	Fiber Count	Diameter(mm)	Weight (kg/km)	RTS(KN)	Ampacity (40℃-70℃)	Ampacity (40℃-90℃)	Ampacity (40℃-90℃)
Specification	Fiber Count	Diameter(mm)	Weight (kg/km)	RTS(KN)	Ampacity (40℃-70℃)	Ampacity (40℃-90℃)	Ampacity (40℃-90℃)
OPPC-240/30	16	21.7	890	76.6	445A	639A	639A
OPPC-70/10	16	17.4	598	52.8	351A	495A	495A
OPPC-120/25	24	15.9	523	49	308	432A	432A
OPPC-150/35	24	17.6	641	64.5	348	492A	492A
