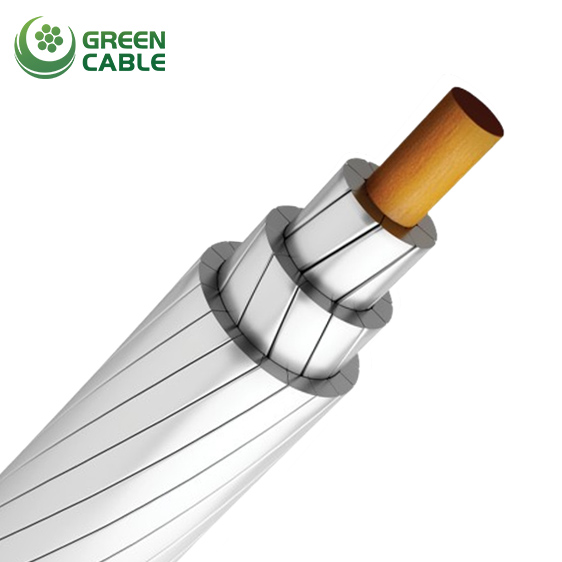

ACCC is designed to operate continuously at elevated temperatures and has excellent sag characteristics through out the operating range. ACCC is the right choice if reconductoring of the existing lines are required to enhance the transmission capacity. This conductor offers Very low line losses and excellent self-damping properties. Because of it’s high strength to weight ratio, ACCC can be used with long spans which brings down the cost of structures in new lines.
Values based on following Specifications:
1350-O tempered aluminum wires as per ASTM B 609 or EN 50540
Hybrid carbon and glass fiber core (Composite Core) according to ASTM B987
ACCC Conductors are required to exhibit lay lengths (ratios) that conform to ASTM B 857 or EN 50540
ASTM B399,AS 1531,BS 3242,DIN 48201,IEC 61089,NFC 34125
| Conductor Name | AL Cross-Section (mm²) | Core Cross-Section (mm²) | Total Cross-Section (mm²) | Conductor Diameter (mm) | Core Diameter (mm) | Aluminum Weight (kg/km) | Core Weight (kg/km) | Total Weight (kg/km) | Core Strength (kN) | Conductor Strength (kN) | DC Resistance @20°C (Ω/km) | Current Capacity @85°C (A) | Current Capacity @120°C (A) | Current Capacity @180°C (A) |
| OCEANSIDE | 194.20 | 28.00 | 222.20 | 17.27 | 5.97 | 534.00 | 54.00 | 588.00 | 59.60 | 70.30 | 0.1441 | 439 | 633 | 841 |
| LINNET | 218.10 | 28.00 | 246.10 | 18.29 | 5.97 | 600.00 | 54.00 | 654.00 | 59.60 | 71.60 | 0.1277 | 472 | 683 | 908 |
| ORIOLE | 222.30 | 39.70 | 262.00 | 18.82 | 7.11 | 611.00 | 76.00 | 687.00 | 85.00 | 97.50 | 0.1255 | 479 | 694 | 924 |
| WACO | 230.10 | 47.10 | 277.20 | 19.56 | 7.75 | 637.00 | 86.00 | 723.00 | 101.00 | 113.90 | 0.1212 | 491 | 714 | 951 |
| LAREDO | 268.40 | 39.70 | 308.10 | 20.50 | 7.11 | 738.00 | 76.00 | 814.00 | 85.00 | 99.70 | 0.1038 | 536 | 780 | 1042 |
| IRVING | 308.80 | 60.30 | 369.10 | 22.40 | 8.76 | 852.00 | 113.00 | 965.00 | 129.00 | 146.30 | 0.0903 | 585 | 857 | 1147 |
| HAWK | 309.70 | 39.70 | 349.40 | 21.79 | 7.11 | 852.00 | 76.00 | 928.00 | 85.00 | 102.30 | 0.0900 | 582 | 852 | 1140 |
| DOVE | 361.50 | 47.10 | 408.60 | 23.55 | 7.75 | 999.00 | 86.00 | 1085.00 | 101.00 | 121.00 | 0.0771 | 639 | 939 | 1260 |
| AMARILLO | 397.60 | 71.30 | 468.90 | 25.14 | 9.53 | 1098.00 | 132.00 | 1230.00 | 151.70 | 173.90 | 0.0702 | 678 | 1001 | 1347 |
| GROSBEAK | 416.20 | 51.90 | 468.10 | 25.15 | 8.13 | 1146.00 | 98.00 | 1244.00 | 110.80 | 133.90 | 0.0672 | 693 | 1023 | 1376 |
| LUBBOCK | 458.00 | 60.30 | 518.30 | 26.42 | 8.76 | 1262.00 | 113.00 | 1375.00 | 129.00 | 154.40 | 0.0608 | 735 | 1089 | 1468 |
| GALVESTON | 512.40 | 60.30 | 572.70 | 27.69 | 8.76 | 1412.00 | 113.00 | 1525.00 | 129.00 | 157.50 | 0.0544 | 784 | 1165 | 1573 |
| DRAKE | 519.70 | 71.30 | 591.00 | 28.14 | 9.53 | 1434.00 | 132.00 | 1566.00 | 151.70 | 180.60 | 0.0536 | 792 | 1179 | 1593 |
| CURLEW | 523.40 | 87.30 | 610.70 | 28.96 | 10.54 | 1454.00 | 164.00 | 1618.00 | 185.90 | 215.30 | 0.0535 | 798 | 1190 | 1609 |
| PLANO | 536.80 | 60.30 | 597.10 | 28.63 | 8.76 | 1483.00 | 113.00 | 1596.00 | 129.00 | 158.80 | 0.0522 | 805 | 1200 | 1622 |
| CORPUS CHRISTI | 558.90 | 60.30 | 619.20 | 29.11 | 8.76 | 1543.00 | 113.00 | 1656.00 | 129.00 | 160.10 | 0.0501 | 824 | 1230 | 1663 |
| ARLINGTON | 583.20 | 71.30 | 654.50 | 29.90 | 9.53 | 1614.00 | 132.00 | 1746.00 | 151.70 | 184.20 | 0.0480 | 846 | 1265 | 1713 |
| CARDINAL | 619.10 | 60.30 | 679.40 | 30.43 | 8.76 | 1710.00 | 113.00 | 1823.00 | 129.00 | 163.70 | 0.0452 | 874 | 1308 | 1774 |
| FORT WORTH | 658.90 | 71.30 | 730.20 | 31.50 | 9.53 | 1821.00 | 132.00 | 1953.00 | 151.70 | 188.60 | 0.0425 | 906 | 1361 | 1848 |
| EL PASO | 684.00 | 60.30 | 744.30 | 31.80 | 8.76 | 1888.00 | 113.00 | 2001.00 | 129.00 | 167.30 | 0.0409 | 924 | 1390 | 1888 |
| BEAUMONT | 723.90 | 71.30 | 795.20 | 32.87 | 9.53 | 2005.00 | 132.00 | 2137.00 | 151.70 | 192.20 | 0.0387 | 956 | 1441 | 1960 |
| SAN ANTONIO | 747.30 | 71.30 | 818.60 | 33.40 | 9.78 | 2076.00 | 132.00 | 2208.00 | 160.10 | 201.90 | 0.0375 | 973 | 1469 | 2000 |
| BITTERN | 801.40 | 60.30 | 861.70 | 34.16 | 8.76 | 2217.00 | 113.00 | 2330.00 | 129.00 | 173.90 | 0.0352 | 1006 | 1522 | 2075 |
| DALLAS | 909.50 | 75.10 | 984.60 | 36.88 | 9.78 | 2525.00 | 143.00 | 2668.00 | 160.10 | 211.30 | 0.0309 | 1086 | 1654 | 2263 |
| HOUSTON | 976.60 | 87.30 | 1063.90 | 38.25 | 10.54 | 2713.00 | 164.00 | 2877.00 | 185.90 | 240.60 | 0.0285 | 1135 | 1736 | 2380 |
| LAPWING | 987.50 | 75.10 | 1062.60 | 38.20 | 9.78 | 2741.00 | 143.00 | 2884.00 | 160.10 | 215.30 | 0.0285 | 1134 | 1734 | 2378 |
| FALCON | 1036.20 | 87.30 | 1123.50 | 39.24 | 10.54 | 2878.00 | 164.00 | 3042.00 | 185.90 | 244.20 | 0.0271 | 1167 | 1789 | 2457 |
| CHUKAR | 1135.80 | 79.10 | 1214.90 | 40.74 | 10.03 | 3157.00 | 147.00 | 3304.00 | 169.50 | 233.10 | 0.0247 | 1224 | 1884 | 2595 |
| BLUEBIRD | 1388.70 | 87.30 | 1476.00 | 44.75 | 10.54 | 3857.00 | 164.00 | 4021.00 | 185.90 | 263.70 | 0.0203 | 1353 | 2107 | 2922 |
| Conductor Name | AL Cross-Section (mm²) | Core Cross-Section (mm²) | Total Cross-Section (mm²) | Conductor Diameter (mm) | Core Diameter (mm) | Aluminum Weight (kg/km) | Core Weight (kg/km) | Total Weight (kg/km) | Core Strength (kN) | Conductor Strength (kN) | DC Resistance @20°C (Ω/km) | Current Capacity @85°C (A) | Current Capacity @120°C (A) | Current Capacity @180°C (A) |
| SILVASSA | 122.70 | 28.00 | 150.70 | 14.35 | 5.97 | 338.00 | 54.00 | 392.00 | 59.60 | 66.50 | 0.2286 | 335 | 479 | 632 |
| HELSINKI | 150.60 | 28.00 | 178.60 | 15.65 | 5.97 | 415.00 | 54.00 | 469.00 | 59.60 | 68.10 | 0.1862 | 378 | 543 | 719 |
| JAIPUR | 155.70 | 47.10 | 202.80 | 16.51 | 7.75 | 436.00 | 86.00 | 522.00 | 101.00 | 109.80 | 0.1801 | 389 | 560 | 742 |
| ZADAR | 177.40 | 39.70 | 217.10 | 17.09 | 7.11 | 488.00 | 76.00 | 564.00 | 85.00 | 95.00 | 0.1576 | 419 | 604 | 802 |
| ROVINJ | 187.80 | 28.00 | 215.80 | 17.09 | 5.97 | 521.00 | 54.00 | 575.00 | 59.60 | 70.20 | 0.1487 | 431 | 622 | 825 |
| COPENHAGEN | 219.90 | 28.00 | 247.90 | 18.29 | 5.97 | 605.00 | 54.00 | 659.00 | 59.60 | 72.00 | 0.1272 | 473 | 684 | 910 |
| REYKJAVIK | 223.10 | 39.70 | 262.80 | 18.82 | 7.11 | 616.00 | 76.00 | 692.00 | 85.00 | 97.50 | 0.1256 | 479 | 694 | 924 |
| MONTE CARLO | 228.50 | 87.30 | 315.80 | 20.78 | 10.54 | 634.00 | 164.00 | 798.00 | 185.90 | 198.80 | 0.1230 | 494 | 720 | 962 |
| GLASGOW | 236.70 | 47.10 | 283.80 | 19.53 | 7.75 | 657.00 | 86.00 | 743.00 | 101.00 | 114.30 | 0.1184 | 497 | 722 | 962 |
| GDANSK | 248.80 | 28.00 | 276.80 | 19.20 | 5.97 | 687.00 | 54.00 | 741.00 | 59.60 | 73.60 | 0.1126 | 507 | 736 | 981 |
| CASABLANCA | 273.60 | 39.70 | 313.30 | 20.50 | 7.11 | 756.00 | 76.00 | 832.00 | 85.00 | 100.40 | 0.1024 | 539 | 786 | 1050 |
| OSLO | 313.80 | 60.30 | 374.10 | 22.40 | 8.76 | 868.00 | 113.00 | 981.00 | 129.00 | 146.70 | 0.0893 | 588 | 861 | 1154 |
| LISBON | 315.50 | 39.70 | 355.20 | 21.79 | 7.11 | 870.00 | 76.00 | 946.00 | 85.00 | 102.70 | 0.0887 | 587 | 858 | 1148 |
| AMSTERDAM | 367.40 | 47.10 | 414.50 | 23.55 | 7.75 | 1018.00 | 86.00 | 1104.00 | 101.00 | 121.70 | 0.0762 | 643 | 944 | 1267 |
| 25 MM | 383.20 | 87.30 | 470.50 | 24.99 | 10.54 | 1058.00 | 164.00 | 1222.00 | 185.90 | 207.30 | 0.0730 | 665 | 981 | 1319 |
| CORDOBA | 399.40 | 47.10 | 446.50 | 24.41 | 7.75 | 1105.00 | 86.00 | 1191.00 | 101.00 | 123.50 | 0.0700 | 675 | 994 | 1336 |
| LEIPZIG | 406.40 | 71.30 | 477.70 | 25.15 | 9.53 | 1126.00 | 132.00 | 1258.00 | 151.70 | 174.60 | 0.0690 | 684 | 1010 | 1358 |
| BRUSSELS | 421.40 | 51.90 | 473.30 | 25.15 | 8.13 | 1166.00 | 98.00 | 1264.00 | 110.80 | 134.50 | 0.0666 | 696 | 1028 | 1382 |
| STOCKHOLM 3L | 453.70 | 60.30 | 514.00 | 26.39 | 8.76 | 1255.00 | 113.00 | 1368.00 | 129.00 | 154.50 | 0.0617 | 730 | 1081 | 1457 |
| STOCKHOLM 2L | 463.30 | 60.30 | 523.60 | 26.39 | 8.76 | 1282.00 | 113.00 | 1395.00 | 129.00 | 155.10 | 0.0605 | 737 | 1092 | 1471 |
| WARSAW | 507.50 | 60.30 | 567.80 | 27.71 | 8.76 | 1406.00 | 113.00 | 1519.00 | 129.00 | 157.60 | 0.0553 | 778 | 1156 | 1561 |
| DUBLIN | 524.50 | 71.30 | 595.80 | 28.14 | 9.53 | 1452.00 | 132.00 | 1584.00 | 151.70 | 181.20 | 0.0534 | 794 | 1181 | 1596 |
| KOLKATA | 543.50 | 71.30 | 614.80 | 28.63 | 9.53 | 1512.00 | 132.00 | 1644.00 | 151.70 | 182.30 | 0.0517 | 809 | 1206 | 1630 |
| MAHAKAM | 544.90 | 87.30 | 632.20 | 29.01 | 10.54 | 1505.00 | 164.00 | 1669.00 | 185.90 | 216.50 | 0.0514 | 814 | 1214 | 1642 |
| HAMBURG | 546.40 | 60.30 | 606.70 | 28.63 | 8.76 | 1514.00 | 113.00 | 1627.00 | 129.00 | 159.70 | 0.0514 | 811 | 1209 | 1634 |
| MILAN | 567.70 | 60.30 | 628.00 | 29.11 | 8.76 | 1573.00 | 113.00 | 1686.00 | 129.00 | 160.90 | 0.0494 | 830 | 1238 | 1675 |
| ROME | 592.50 | 71.30 | 663.80 | 29.90 | 9.53 | 1643.00 | 132.00 | 1775.00 | 151.70 | 185.00 | 0.0474 | 851 | 1273 | 1724 |
| VIENNA | 629.20 | 60.30 | 689.50 | 30.43 | 8.76 | 1739.00 | 113.00 | 1852.00 | 129.00 | 164.40 | 0.0445 | 880 | 1318 | 1787 |
| BUDAPEST | 668.30 | 71.30 | 739.60 | 31.50 | 9.53 | 1852.00 | 132.00 | 1984.00 | 151.70 | 189.30 | 0.0420 | 912 | 1369 | 1859 |
| MUMBAI | 685.40 | 71.30 | 756.70 | 31.78 | 9.53 | 1904.00 | 132.00 | 2036.00 | 151.70 | 190.30 | 0.0410 | 924 | 1388 | 1886 |
| PRAGUE | 690.70 | 60.30 | 751.00 | 31.78 | 8.76 | 1917.00 | 113.00 | 2030.00 | 129.00 | 167.90 | 0.0407 | 926 | 1393 | 1892 |
| DHAKA | 723.90 | 71.30 | 795.20 | 32.87 | 9.53 | 2005.00 | 132.00 | 2137.00 | 151.70 | 192.40 | 0.0387 | 956 | 1441 | 1960 |
| MUNICH | 733.20 | 71.30 | 804.50 | 32.84 | 9.53 | 2039.00 | 132.00 | 2171.00 | 151.70 | 192.90 | 0.0384 | 959 | 1446 | 1967 |
| WARWICK | 749.50 | 87.30 | 836.80 | 33.40 | 10.54 | 2078.00 | 164.00 | 2242.00 | 185.90 | 228.10 | 0.0375 | 974 | 1470 | 2001 |
| LONDON | 759.00 | 75.10 | 834.10 | 33.40 | 9.78 | 2102.00 | 143.00 | 2245.00 | 160.10 | 202.80 | 0.0370 | 980 | 1479 | 2013 |
| PARIS | 813.70 | 60.30 | 874.00 | 34.16 | 8.76 | 2253.00 | 113.00 | 2366.00 | 129.00 | 174.80 | 0.0345 | 1016 | 1537 | 2096 |
| BORDEAUX | 880.90 | 87.30 | 968.20 | 35.76 | 10.54 | 2437.00 | 164.00 | 2601.00 | 185.90 | 235.50 | 0.0318 | 1066 | 1619 | 2213 |
| ANTWERP | 944.90 | 75.10 | 1020.00 | 36.86 | 9.78 | 2614.00 | 143.00 | 2757.00 | 160.10 | 213.30 | 0.0297 | 1106 | 1685 | 2306 |
| BERLIN | 1006.50 | 87.30 | 1093.80 | 38.20 | 10.54 | 2784.00 | 164.00 | 2948.00 | 185.90 | 242.50 | 0.0278 | 1148 | 1755 | 2407 |
| MADRID | 1013.10 | 75.10 | 1088.20 | 38.20 | 9.78 | 2801.00 | 143.00 | 2944.00 | 160.10 | 217.10 | 0.0276 | 1151 | 1760 | 2414 |
| ATHENS | 1409.70 | 87.30 | 1497.00 | 44.75 | 10.54 | 3900.00 | 164.00 | 4064.00 | 185.90 | 265.20 | 0.0199 | 1364 | 2125 | 2949 |
