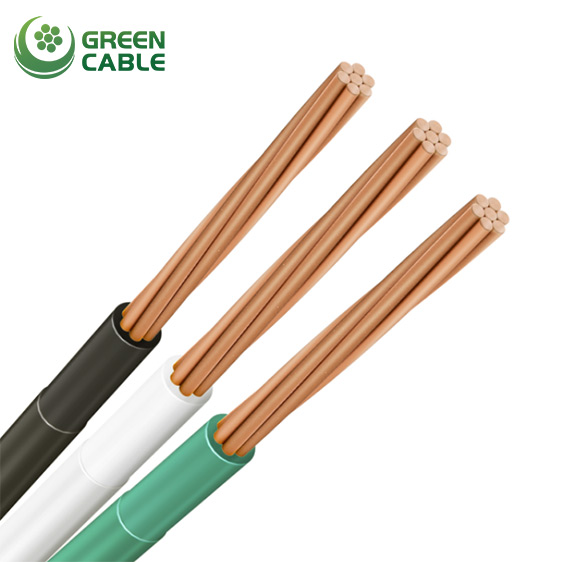

THHN THWN Wire

General use in commercial and industrial construction, and installations where resistance against oils and gasoline is required. May be used for power and control circuits in recognized raceways, in wet or dry locations, and in presence of gases, gasoline and chemicals. Also suitable as machine tool and switchboard wiring.

Send E-mail Get Price

Construction

Conductor: 1.Annealed solid copper conductor (Size: 14-10 AWG)
2.Annealed stranded copper conductor(Size: 14-2 AWG)
3.Annealed compressed stranded class B copper conductor(Size: 1 AWG-1000 MCM)
Insulation: PVC (Red, blue, black, brown, yellow, green, green/yellow or other colors)

Standards

UL83

Size	Conductor			Insulation		Nylon Jacket		Approx. Weight
	No. of Wires	Dia. of Wires	Conductor Dia.	Nominal Thickness	Insulation Dia.	Nominal Thickness	Overall Dia.
	No. of Wires	Dia. of Wires	Conductor Dia.	Nominal Thickness	Insulation Dia.	Nominal Thickness	Overall Dia.
AWG/Kcmil	No.	mm	mm	mm	mm	mm	mm	kg/km
14	1	1.63	1.63	0.39	2.41	0.11	2.63	23.4
12	1	2.06	2.06	0.39	2.84	0.11	3.06	35.5
10	1	2.59	2.59	0.51	3.61	0.11	3.83	56.0
14	7	0.62	1.86	0.39	2.64	0.11	2.86	24.5
12	7	0.78	2.34	0.39	3.12	0.11	3.34	36.7
10	7	0.98	2.94	0.51	3.96	0.11	4.18	57.8
8	7	1.24	3.72	0.77	5.26	0.13	5.52	95.5
6	7	1.56	4.68	0.77	6.22	0.13	6.48	144.0
4	7	1.96	5.88	1.02	7.92	0.16	8.24	229.2
3	7	2.20	6.60	1.02	8.64	0.16	8.96	282.7
2	7	2.48	7.44	1.02	9.48	0.16	9.80	352.3
1	19	1.69	8.20	1.27	10.74	0.18	11.10	450.7
1/0	19	1.89	9.20	1.27	11.74	0.18	12.10	554.2
2/0	19	2.13	10.34	1.27	12.88	0.18	13.24	692.2
3/0	19	2.39	11.61	1.27	14.15	0.18	14.51	859.5
4/0	19	2.68	13.01	1.27	15.55	0.18	15.91	1067.5
250	37	2.09	14.20	1.53	17.26	0.21	17.68	1280.1
300	37	2.29	15.55	1.53	18.61	0.21	19.03	1521.9
350	37	2.47	16.79	1.53	19.85	0.21	20.27	1757.7
400	37	2.64	17.96	1.53	21.02	0.21	21.44	1996.1
500	37	2.95	20.05	1.53	23.11	0.21	23.53	2469.7
600	61	2.52	22.00	1.78	25.56	0.23	26.02	2994.7
750	61	2.82	24.64	1.78	28.20	0.23	28.66	3718.1
1000	61	3.25	28.40	1.78	31.96	0.23	32.42	4891.8
