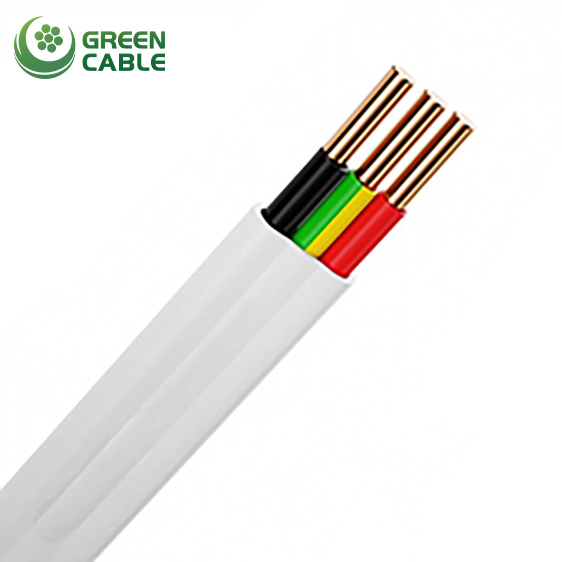

It is used in conduit, underground ducts for domestic, commercial and industrial installations where not subject to mechanical damage. Suitable for single phase applications requiring neutral and earth.
Phase Conductor: class 1 plain annealed solid copper wire, or class 2 plain annealed stranded copper wire
Insulation: PVC, V-90, Color: Red, Black, Yellow/Green
Earth Conductor: class 1 plain annealed solid copper wire, or class 2 plain annealed stranded copper wire
Outer Sheath: PVC, 3V-90, Color: White
AS/NZS 5000.2
|
Nominal |
Phase Conductor |
Phase Insulation |
Earth Conductor |
Earth Insulation |
Outer Sheath |
Weight |
||||||
|
Construction |
Diameter |
Nominal Thickness |
Diameter |
Construction |
Diameter |
Nominal Thickness |
Diameter |
Nominal Thickness |
Width |
Height |
||
|
mm2 |
No./mm |
mm |
mm |
mm |
No./mm |
mm |
mm |
mm |
mm |
mm |
mm |
kg/km |
|
2x1.0+1.0 |
1/1.13 |
1.13 |
0.6 |
2.33 |
1/1.13 |
1.13 |
0.6 |
2.33 |
0.9 |
8.79 |
4.13 |
72.12 |
|
2x1.5+1.5 |
7/0.52 |
1.56 |
0.6 |
2.76 |
7/0.52 |
1.56 |
0.6 |
2.76 |
0.9 |
10.08 |
4.56 |
93.63 |
|
2x2.5+2.5 |
7/0.68 |
2.04 |
0.7 |
3.44 |
7/0.68 |
2.04 |
0.7 |
3.44 |
1.0 |
12.32 |
5.44 |
143.65 |
|
2x4+2.5 |
7/0.85 |
2.55 |
0.8 |
4.15 |
7/0.68 |
2.04 |
0.7 |
3.44 |
1.1 |
13.94 |
6.35 |
188.97 |
|
2x6+2.5 |
7/1.04 |
3.12 |
0.8 |
4.72 |
7/0.68 |
2.04 |
0.7 |
3.44 |
1.1 |
15.08 |
6.92 |
234.16 |
|
2x10+4 |
7/1.35 |
4.05 |
1.0 |
6.05 |
7/0.85 |
2.55 |
0.8 |
4.15 |
1.2 |
18.65 |
8.45 |
365.37 |
|
2x16+6 |
7/1.70 |
5.10 |
1.0 |
7.10 |
7/1.04 |
3.12 |
0.8 |
4.72 |
1.3 |
21.52 |
9.70 |
522.80 |
