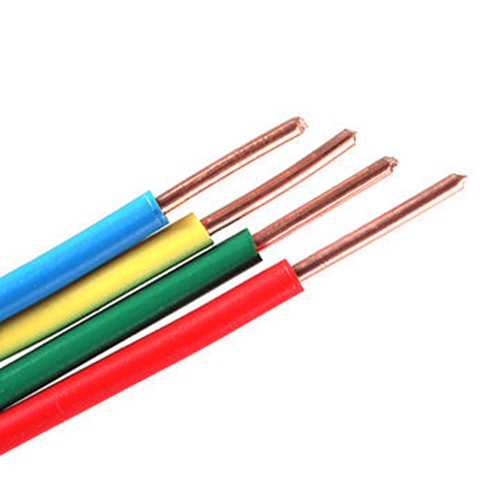

PVC insulated wire
Model: H07V-R H07V-U, H05V-R H05V-U
Standards:227 IEC 01/05, equivalent to VDE 0281 BS6004
Conductor: bare solid/stranded copper--class 1 or class 2 IEC228
Insulation: PVC
Voltage rating: 450/750V for above 1.5mm 2 , 300/500V for below 1mm 2
Temperature range: 0 ºC to 70ºC;
Main colors: black-blue-red-green/yellow-brown-grey-orange-violet-white-dark blue
Minimum bending radius:
Up to 10mm² , 3 x overall dia.;10mm² to 25mm², 4 x overall dia.;
Above 25mm², 5 x overall dia.
Application: suitable for use in conduit and for fixed, protected installation
Remark: the cable can be of Low smoke free halogen, flame retardant and other property
Model: H07V-K H05V-K , H07V2-K H05V2-K
Standards:227 IEC 02/06, equivalent to VDE 0281 BS6004
Conductor: bare stranded copper--class 5 IEC228
Insulation: PVC
Voltage rating: 450/750V for above 1.5mm 2 , 300/500V for below 1mm 2
Temperature range: 0 ºC to 70ºC,0 ºC to 90ºC
Main colors: black-blue-red-green/yellow-brown-grey-orange-violet-white-dark blue
Minimum bending radius:
H07V-K, 6 x overall dia. ; H05V-K, 4 x overall dia.;
Application: flexible wiring, for switch control, instrumentation panels and for internal connection
Remark: the cable can be of Low smoke free halogen, flame retardant and other property.
H07V-R H07V-U H05V-R H05V-U BY 227IEC01/05 equivalent to VDE 0281 BS6004 | |||||
Cross Section | Conductor Construction | Insulation Thickness | Overall Diameter Max | Min Insulation Resistance@ 70ºC | Weight Approx |
1x0.5 | 1/0.80 | 0.6 | 2.4 | 0.015 | 8 |
1x0.75 | 7/0.97 | 0.6 | 2.8 | 0.012 | 11 |
1x0.75 | 1/0.97 | 0.6 | 2.6 | 0.012 | 11 |
1x1.0 | 7/0.43 | 0.6 | 3.0 | / | 14 |
1x1.0 | 1/1.13 | 0.6 | 2.8 | 0.011 | 14 |
1x1.5 | 7/0.52 | 0.7 | 3.4 | 0.010 | 21 |
1x1.5 | 1x1.38 | 0.7 | 3.3 | 0.011 | 20 |
1x2.5 | 7/0.67 | 0.8 | 4.2 | 0.009 | 32 |
1x2.5 | 1x1.78 | 0.8 | 3.9 | 0.010 | 31 |
1x4 | 7/0.85 | 0.8 | 4.8 | 0.0077 | 45 |
1x4 | 1/2.25 | 0.8 | 4.4 | 0.0085 | 45 |
1x6 | 7/1.04 | 0.8 | 5.4 | 0.0065 | 65 |
1x6 | 1/2.76 | 0.8 | 4.9 | 0.0070 | 65 |
1x10 | 7/1.35 | 1.0 | 6.8 | 0.0065 | 110 |
1x10 | 1/3.57 | 1.0 | 6.4 | 0.0070 | 110 |
1x16 | 7/1.70 | 1.0 | 8.0 | 0.0050 | 165 |
1x25 | 7/2.14 | 1.2 | 9.8 | 0.0050 | 264 |
1x35 | 7/2.52 | 1.2 | 11.0 | 0.0040 | 360 |
1x50 | 19/1.78 | 1.4 | 13.0 | 0.0045 | 490 |
1x70 | 19/2.14 | 1.4 | 15.0 | 0.0035 | 685 |
1x95 | 19/2.52 | 1.6 | 17.5 | 0.0035 | 946 |
1x120 | 37/2.03 | 1.6 | 19.0 | 0.0032 | 1181 |
1x150 | 37/2.25 | 1.8 | 21.0 | 0.0032 | 1453 |
1x185 | 37/2.52 | 2.0 | 23.5 | 0.0032 | 1821 |
1x240 | 61/2.24 | 2.2 | 26.5 | 0.0032 | 2383 |
1x300 | 61/2.50 | 2.4 | 29.5 | 0.0030 | 2983 |
1x400 | 61/2.85 | 2.6 | 33.5 | 0.0028 | 3800 |
H07V-K H05V-K BY 227IEC02/06 equivalent to VDE 0281 BS6004 | |||||
Cross Section | Conductor Construction | Insulation Thickness | Overall Diameter Max | Min Insulation Resistance @ 70ºC | Weight Approx |
1x0.5 | 16/0.2 | 0.6 | 2.4 | 0.013 | 8 |
1x0.75 | 24/0.2 | 0.6 | 2.6 | 0.011 | 11 |
1x1.0 | 32/0.2 | 0.6 | 2.8 | 0.010 | 14 |
1x1.5 | 48/0.2 | 0.7 | 3.5 | 0.010 | 20 |
1x2.5 | 49/0.25 | 0.8 | 4.2 | 0.009 | 31 |
1x4 | 56/0.3 | 0.8 | 4.8 | 0.007 | 47 |
1x6 | 84/0.3 | 0.8 | 6.3 | 0.006 | 67.8 |
1x10 | 84/0.4 | 1.0 | 7.6 | 0.0056 | 121 |
1x16 | 126/0.4 | 1.0 | 8.8 | 0.0046 | 173 |
1x25 | 196/0.4 | 1.2 | 11.0 | 0.0044 | 268 |
1x35 | 276/0.4 | 1.2 | 12.5 | 0.0038 | 370 |
1x50 | 396/0.4 | 1.4 | 14.5 | 0.0037 | 526 |
1x70 | 360/0.5 | 1.4 | 17.0 | 0.0032 | 727 |
1x95 | 475/0.5 | 1.6 | 19.0 | 0.0032 | 959 |
1x120 | 608/0.5 | 1.6 | 21.0 | 0.0029 | 1201 |
1x150 | 756/0.5 | 1.8 | 23.5 | 0.0029 | 1508 |
1x185 | 925/0.5 | 2.0 | 26.0 | 0.0029 | 1844 |
1x240 | 1221/0.5 | 2.2 | 29.5 | 0.0028 | 2420 |
