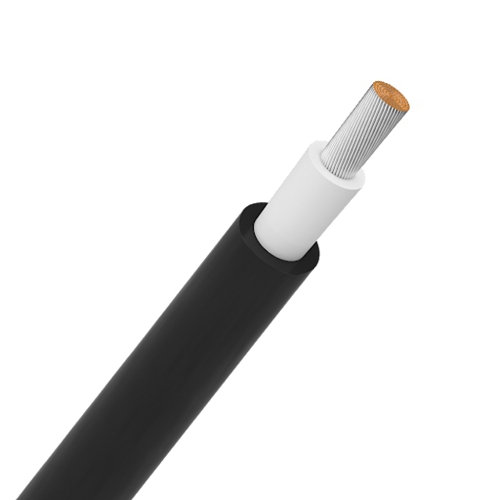

Solar Cable (PV Wire)
Application:
Especially for the connection between Solar power generation device connector and connection of inverter, Under the condition of different climate outdoor installation, and can adapt to the dry and wet indoor working environment.
Construction:
Core Conductor | Tinned annealed copper (stranded core) |
Popular Sizes | 1 core x2.5/4.0/6.0/10.0/16.0/25.0/35.0mm2 |
Cable Conductor | Stranded tinned annealed copper |
Insulation | Electron-beam cross-linked Polyolefin(XLPO) |
Jacket | XLPO/ PE (black, red) |
Other Specs | a) Temperature rating: -40C up to +120C |
b) Fire performance: IEC 60332-1, UL1581 VW-1 | |
c) Approval: TUV Rheinland 2PfG 1169 1.5mm2 to 50mm2 | |
d) High resistance against hear, cold, abrasion, UV, Ozone and hydrolyes. Halogen free, flame ratardant | |
e) Voltage suitable: 600-1000V |
Characteristic:
High heat-resistant flame retardant
• halogen-free
• climate resistance
• minimum bending radius: Φ ≦ 12mm:3XD
Φ > 12mm:4XD
• halogen-free:
Not contain hydrochloric acid comply with EN50627-2-1
Not contain fluorinecomply with EN60684-2
• Flame retardant from extinguish compy with IEC60332-1-2+EN60332-1-2
Section Area | External Diameter | Current Carring Capacity |
(mm2) | (mm) | (A) |
4 | 6.1 | 55 |
6 | 7.2 | 70 |
10 | 9 | 98 |
16 | 10.2 | 132 |
Section Area | Insulation Thickness | Sheath Thickness | External Diameter | Current Carring Capacity |
(mm2) | (mm) | (mm) | (mm) | (A) |
2x1.5 | 0.7 | 0.8 | 4.9x10 | 30 |
2x2.5 | 0.7 | 0.8 | 5.5x11.5 | 41 |
2x4 | 0.7 | 0.8 | 6.1x12.5 | 55 |
2x6 | 0.8 | 0.9 | 7.2x14.5 | 70 |
2x10 | 0.9 | 1.1 | 9.0x18.5 | 98 |
2x16 | 1.1 | 1.1 | 10.2x20.5 | 132 |
